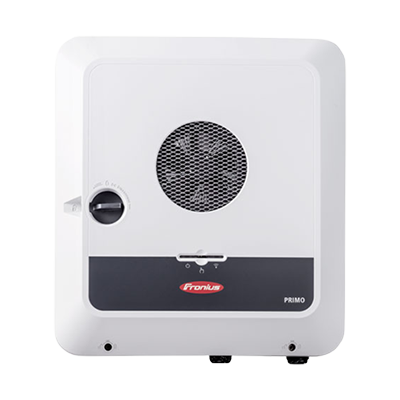

PRIMO GEN24 6.0 SC
Art. no.
6663695
Manufacturer No.
4,210,255
Product details
Product information "PRIMO GEN24 6.0 SC"
Technical details
| Topology | transformerless |
|---|---|
| Grid protection | no |
| Max. short circuit current per MPPT (A) | 44/32 |
| Max. efficiency (%) | 97.70 |
| Surge protection DC | no |
| Start input voltage (V) | 80 |
| Min. temperature ambient (°C) | -40 |
| Interface 1 | W-Lan |
| Backup system light | no |
| Max. input voltage DC (V) | 600.00 |
| Protection degree | IP66 |
| Number of independent MPPT (pcs) | 2 |
| European efficiency (%) | 97.40 |
| Backup system full | no |
| Max. generator power DC (kWp) | 9.00 |
| Decibel | 42 |
| Max. short circuit current (A) total | 76.00 |
| Max. AC power (kVA) | 6.00 |
| Max. input current per MPPT (A). | 22/16 |
| Total number of string inputs | 4 |
| MPP min. voltage range input (V) | 190.00 |
| Surge protection AC | no |
| Rapid shutdown | yes |
| Display | w/o display |
| Max. output current (A) | 26.10 |
| DC connection | spring-type terminal |
| Integrated DC switch | yes |
| Offgrid usable | no |
| MPP max. voltage range input (V) | 480.00 |
| Contact ripple control receiver | yes |
| Interface 2 | Ethernet |
| Max. input current DC (A) total | 38.00 |
| Integrated AC switch | no |
| Arc Fault Circuit Interrupter | yes |
| Feed-in phases | 1 |
| AC nominal power (kW) | 6.00 |
| Min. voltage range input (V) | 65 |
| Manufacturer item name | Primo GEN24 6.0 SC |
|---|---|
| Intrastat product number (HS-code) | 85044084 |
| Manufacturer | Fronius |
| Intrastat country of origin | Austria |
| Height incl. packaging (cm) | 53.00 |
|---|---|
| Pal. weight (kg) | 410.00 |
| Amount per Pallet | 16 |
| Pack. material | cardboard box |
| Length incl. packaging (cm) | 17.00 |
| Width incl. packaging (cm) | 48.00 |
| Weight incl. packaging (Kg) | 19.000 |
| Pal. dim. LxBxH (mm) | 1200x800x1750 |
| Height without packaging (mm) | 530.00 |
|---|---|
| Length without packaging (mm) | 165.00 |
| Weight without packaging (kg) | 15.200 |
| Width without packaging (mm) | 474.00 |
| Warranty provider | Fronius |
|---|
