GW9.0-BAT-D-G20
Goodwe ESA - Battery
Art. no.
6664799
Manufacturer No.
BAO9000-01-00P
Product details

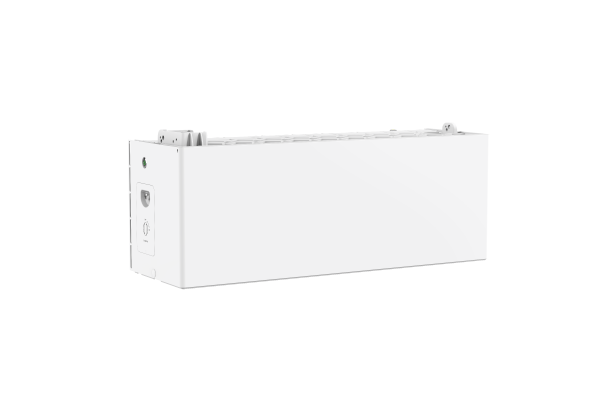

Product information "GW9.0-BAT-D-G20"
GoodWe GW9.0-BAT-D-G20 is a high-voltage 9 kWh lithium battery module designed for residential energy storage systems. Compatible with GoodWe ESA inverters, it delivers reliable performance, scalable capacity, and efficient energy storage for increased self-consumption and energy independence.
The GoodWe GW9.0-BAT-D-G20 is a high-performance lithium battery module engineered for modern residential energy storage systems. With a rated capacity of 9 kWh (approx. 8.7 kWh usable), it provides reliable energy storage to maximise solar self-consumption and reduce dependence on the grid.
Designed to integrate seamlessly with GoodWe ESA all-in-one systems, this battery module forms part of a flexible and scalable energy solution suitable for both new installations and retrofits.
Key Features
- 9 kWh rated capacity with high usable energy
- High-voltage lithium (LiFePO4) technology for safety and long lifespan
- Compatible with GoodWe ESA inverter systems
- Modular and scalable design for future expansion
- Supports combining multiple battery units in parallel for increased capacity
Performance and Reliability
- Designed for efficient energy storage and fast charge/discharge performance
- Long service life with up to 10,000 cycles (under test conditions)
- Stable operation across a wide temperature range
- Integrated battery management for optimized safety and system performance
Flexible and Scalable System Design
- Each battery module operates as an independent unit with its own management system
- Expandable with multiple modules to match growing energy needs
- Compatible with mixed battery capacities within the same system for flexibility
Smart Energy Storage Solution
- Enables higher solar self-consumption and reduced electricity bills
- Supports backup power applications when paired with compatible inverters
- Ideal for residential and small commercial solar installations
Technical details
| Protection degree | IP66 |
|---|---|
| Capacity extendable later | yes without restriction |
| Max. output current discharging (A) | 11.80 |
| Max. output current charging (A) | 10.70 |
| Min. temperature ambient (°C) | -20 |
| Usable capacity (kWh) | 8.70 |
| Battery cell chemistry | LFP |
| Dangerous goods description | LITHIUM ION BATTERIES |
|---|---|
| Dangerous goods Weight (net) (kg) | 53.010 |
| Dangerous goods class | 9 |
| Dangerous goods transportation category | 2 |
| UN No. | 3480 |
| Dangerous goods packaging type | 4G |
| Manufacturer | GoodWe |
| Manufacturer item name | GW9.0-BAT-D-G20 |
| Intrastat country of origin | China |
| Intrastat product number (HS-code) | 85076000 |
| Classification code | M4 |
| Tunnel restriction code | (E) |
| Length incl. packaging (cm) | 39.50 |
|---|---|
| Width incl. packaging (cm) | 105.00 |
| Height incl. packaging (cm) | 42.20 |
| Weight incl. packaging (Kg) | 82.500 |
| Amount per Pallet | 4 |
| Pal. weight (kg) | 330.00 |
| Pal. dim. LxBxH (mm) | 1100x986x825 |
| Pack. material | cardboard box |
| Length without packaging (mm) | 270.00 |
|---|---|
| Width without packaging (mm) | 800.00 |
| Height without packaging (mm) | 326.00 |
| Weight without packaging (kg) | 78.000 |
| Warranty provider | GoodWe |
|---|
