GW8.3-BAT, 8 kWh usable G20
ESA Series - HV storage Sand G20
Art. no.
6663603
Manufacturer No.
BAE8000-06-00P
Product details

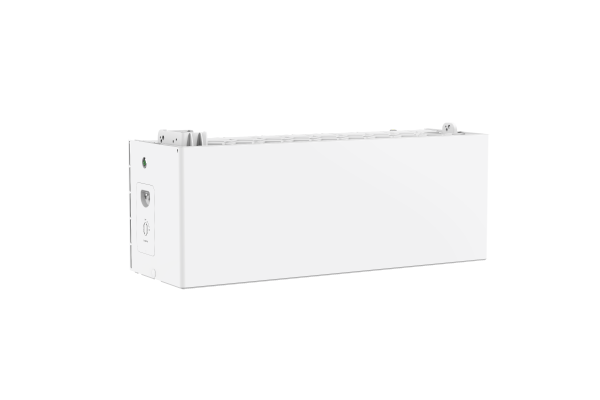

Product information "GW8.3-BAT, 8 kWh usable G20"
battery, 8.32kWh, lithium iron phosphate LiFePO4 - ESA Single Phase Home Storage Solution (HV)
Technical details
| Protection degree | IP66 |
|---|---|
| Capacity extendable later | yes without restriction |
| Max. output current discharging (A) | 21.00 |
| Max. output current charging (A) | 19.00 |
| Min. temperature ambient (°C) | -20 |
| Usable capacity (kWh) | 8.00 |
| Battery cell chemistry | LFP |
| Dangerous goods description | LITHIUM ION BATTERIES |
|---|---|
| Dangerous goods Weight (net) (kg) | 51.480 |
| Dangerous goods class | 9 |
| Dangerous goods transportation category | 2 |
| UN No. | 3480 |
| Dangerous goods packaging type | 4G |
| Manufacturer | GoodWe |
| Manufacturer item name | GW8.3-BAT-D-G20 |
| Intrastat country of origin | China |
| Intrastat product number (HS-code) | 85076000 |
| Classification code | M4 |
| Tunnel restriction code | (E) |
| Length incl. packaging (cm) | 39.50 |
|---|---|
| Width incl. packaging (cm) | 105.00 |
| Height incl. packaging (cm) | 42.20 |
| Weight incl. packaging (Kg) | 85.100 |
| Amount per Pallet | 4 |
| Pal. weight (kg) | 341.60 |
| Pal. dim. LxBxH (mm) | 1110x825x950 |
| Pack. material | cardboard box |
| Length without packaging (mm) | 270.00 |
|---|---|
| Width without packaging (mm) | 800.00 |
| Height without packaging (mm) | 326.00 |
| Weight without packaging (kg) | 79.000 |
| Warranty provider | GoodWe |
|---|
