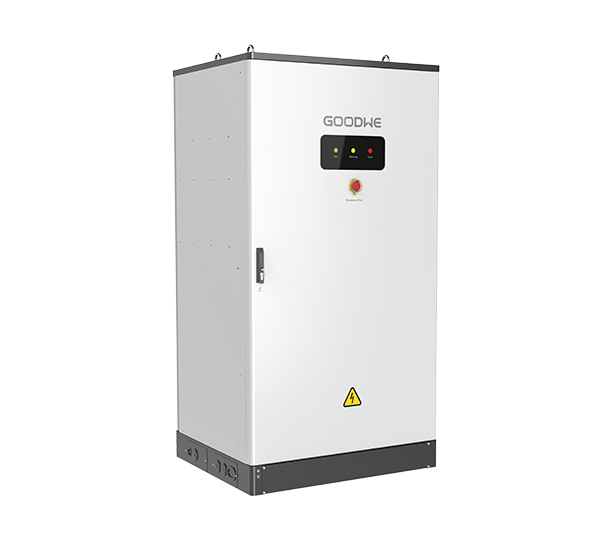

BAT112kWh GW GW112.6-BAT-AC-G10
GW112.6-BAT-AC-G10
Art. no.
6661781
Manufacturer No.
BAH112K-06-00P
Product details
Product information "BAT112kWh GW GW112.6-BAT-AC-G10"
Technical details
| Protection degree | IP55 |
|---|---|
| Capacity extendable later | yes without restriction |
| Max. output current discharging (A) | 220.00 |
| Max. output current charging (A) | 180.00 |
| Min. temperature ambient (°C) | -20 |
| Nominal voltage DC (V) | 563.20 |
| Usable capacity (kWh) | 110.00 |
| Battery cell chemistry | LFP |
| Dangerous goods description | LITHIUM ION BATTERIES |
|---|---|
| Dangerous goods Weight (net) (kg) | 990.000 |
| Dangerous goods class | 9 |
| Dangerous goods transportation category | 2 |
| UN No. | 3480 |
| Dangerous goods packaging type | 4G |
| Manufacturer | GoodWe |
| Manufacturer item name | GW112.6-BAT-AC-G10 |
| Intrastat country of origin | China |
| Intrastat product number (HS-code) | 85076000 |
| Classification code | M4 |
| Tunnel restriction code | (E) |
| Length incl. packaging (cm) | 115.00 |
|---|---|
| Width incl. packaging (cm) | 111.50 |
| Height incl. packaging (cm) | 216.00 |
| Weight incl. packaging (Kg) | 1475.000 |
| Amount per Pallet | 1 |
| Pal. weight (kg) | 1475.00 |
| Pal. dim. LxBxH (mm) | 1150x1115x1330 |
| Length without packaging (mm) | 1055.00 |
|---|---|
| Width without packaging (mm) | 1055.00 |
| Height without packaging (mm) | 2000.00 |
| Weight without packaging (kg) | 1400.000 |
| Warranty provider | GoodWe |
|---|
