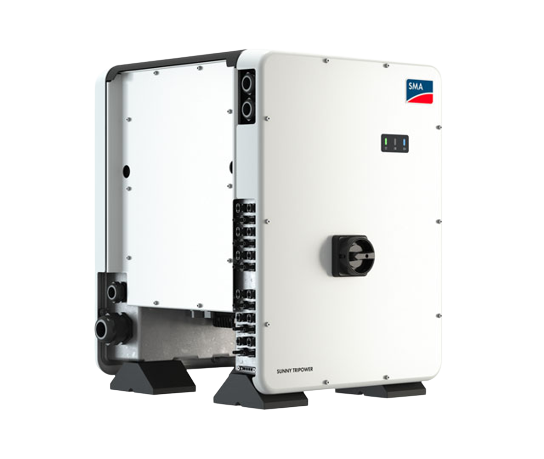

STP 50-41 CORE1
PV-IV, 3-phase, 6 MPPT, AFCI, w/o display, Sunclix
Art-No.
0134363
Manufacturer No.
03-50-1000-1-41
Product details
Product information "STP 50-41 CORE1"
PV inverter for grid feed-in, Pac,r/Sac,max 50000 W/50000 VA, threephase feed-in, with reactive power supply, transformerless, through integrated web server as well as WLAN and Speedwire/Webconnect communication interface incl. Modbus and SunSpec protocol, browserbased setup of country settings, 6 independent MPP trackers, 12 DC inputs, fuseless DC design, DC SUNCLIX terminal, integrated DC loadbreak switch, AC terminal for copper or aluminum conductors, optional DC and AC overvoltage protection type II or type I/II, Arc protection function (AFCI).
Technical details
| Max. AC power (kVA) | 50.00 |
|---|---|
| Topology | transformerless |
| Max. short circuit current per MPPT (A) | 30 |
| Min. voltage range input (V) | 150 |
| Max. short circuit current (A) total | 180.00 |
| Surge protection DC | no |
| MPP min. voltage range input (V) | 500.00 |
| UI curve diagnosis | yes |
| Min. temperature ambient (°C) | -25 |
| Protection degree | IP65 |
| Max. input voltage DC (V) | 1000.00 |
| Total number of string inputs | 12 |
| Interface 1 | Ethernet |
| Rapid shutdown | no |
| Step-Up converter | yes |
| Surge protection AC | no |
| Max. input current per MPPT (A). | 20 |
| Display | w/o display |
| Start input voltage (V) | 188 |
| Degree of protection IP | IP65 |
| Max. efficiency (%) | 98.10 |
| Integrated DC switch | yes |
| Offgrid usable | yes |
| MPP max. voltage range input (V) | 800.00 |
| Decibel | 65 |
| Integrated AC switch | no |
| Arc Fault Circuit Interrupter | yes |
| Number of independent MPPT (pcs) | 6 |
| Max. output current (A) | 72.50 |
| Shadow management | yes |
| DC connector type | SUNCLIX |
| Max. input current DC (A) total | 120.00 |
| AC nominal power (kW) | 50.00 |
| European efficiency (%) | 97.80 |
| Max. generator power DC (kWp) | 75.00 |
| String fuses | not included |
| Intrastat country of origin | Germany |
|---|---|
| Manufacturer item name | Sunny Tripower CORE1 |
| Manufacturer | SMA |
| Intrastat product number (HS-code) | 85044086 |
| Amount per Pallet | 1 |
|---|---|
| Width incl. packaging (cm) | 73.30 |
| Pack. material | cardboard box |
| Weight incl. packaging (Kg) | 88.000 |
| Pal. dim. LxBxH (mm) | 840x770x900 |
| Pal. weight (kg) | 106.00 |
| Length incl. packaging (cm) | 62.10 |
| Height incl. packaging (cm) | 76.90 |
| Length without packaging (mm) | 733.00 |
|---|---|
| Weight without packaging (kg) | 84.000 |
| Height without packaging (mm) | 569.00 |
| Width without packaging (mm) | 621.00 |
