Home Storage 16.4 + Sunny Tripower SE 10.0
Product information "Home Storage 16.4 + Sunny Tripower SE 10.0"
CAUTION:
Hazardous material according to UN 3480 / Transport hazard class 9 / Packing Group II
***Alternatively to the self-assembly of the Com connection between inverter and Home Storage battery, the Com cable set (item 0155275) can also be used***
If required, the base unit for floor mounting of the storage system must be ordered separately for each tower (item 0154628). Accessory for wall mounting is included.
The fist in the eye, like pot and lid - there are a few sayings that describe an ideal match. In our PV world, SMA is now adding "Smart Energy + Home Storage" to this list. Because the combination of the 1- and 3-phase hybrid series with the new high-voltage battery is a perfect match - a precision landing. The compact power packs shine with an integrated BMS and up to 8000 charging cycles for quick installation and intensive use. With up to 5 battery modules of 3.2 kWh each, a total of 16.4 kWh of usable storage power is available for every energy situation.
Product advantages:
• 1A networking through a uniform manufacturer
• Integrated AC + DC overvoltage protection type 2
• 8000 charging cycles and 10-year guarantee after registering the memory
Product features system:
• AC power: 10.0 kW
• Number of MPPT: 2
• Input Voltage: 280-800V DC
• AC connection: 3-phase
• Topology: transformerless
• Communication: WLAN, Ethernet, CAN
• Interfaces: 5 x DI (FRE), 1 x DO
• Protection class: IP65
• Cooling: passive
• Weight: 30.0 kg
• Dimensions: 500 x 598 x 173 mm (W x H x D)
Product features memory:
• Capacity (usable): 16.4 kWh
• Output voltage: 480V
• Max. charge/discharge current: 36 A
• Cell chemistry: LFP (lithium iron phosphate)
• Time window extension: up to 2 years
• Place of installation: indoor / outdoor
• Mounting: wall (included), floor (to be ordered separately)
• Protection class: IP65
• Cooling: passive
• Dimensions: 610 x 1455 + 969 x 215 mm (W x H x D)
• Total weight: 190.0 kg
Conclusion:
"Everything from a single source" plus "SMA" now stands for a complete range and reliable quality.

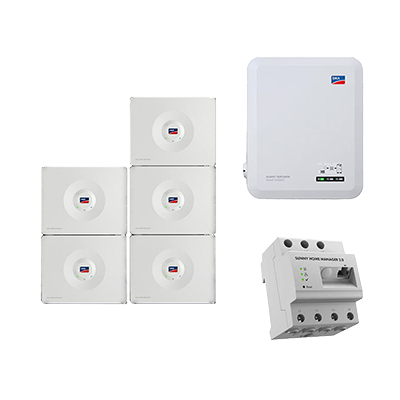

Scope of delivery:
• 1 x SMA Sunny Tripower SE 10.0 (item 0150370)
• 1 x SMA Home Manager 2.0 (item 0126650)
• 5 x SMA Home Storage memory (item 0154631)
Wichtige technische Daten
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Dangerous goods Weight (net) (kg) | 190.000 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
Downloads
-
Home Manager 2.00126650
-
Sunny Tripower 10.0 SE0150370
-
Home Storage 3.20154631
-
Home Manager 2.00126650
-
Sunny Tripower 10.0 SE0150370
-
Home Storage 3.20154631
Technical details
| Topology | transformerless |
|---|---|
| Protection degree | IP65 |
| Max. short circuit current per MPPT (A) | 20\/40 |
| Number of independent MPPT (pcs) | 2 |
| AC nominal power (kW) | 10.00 |
| Max. output current (A) | 15.20 |
| Contact for self-consumption optimization (e.g. for heat pump) | 1 |
| MPP min. voltage range input (V) | 280.00 |
| Backup system full | no |
| Usable capacity (kWh) | 16.40 |
| Max. input voltage DC (V) | 1000.00 |
| Commercial system | no |
| Surge protection AC | type 2 |
| Max. AC power (kVA) | 10.00 |
| Max. discharging power (kW) | 10.60 |
| Capacity extendable later | yes with time restriction |
| Display | w/o display |
| Max. generator power DC (kWp) | 15.00 |
| Battery voltage | High Voltage |
| Max. input current per MPPT (A). | 12,5\/25 |
| Start input voltage (V) | 180 |
| Battery cell chemistry | LFP |
| Max. nominal charging power (kW) | 10.60 |
| Integrated DC switch | yes |
| MPP max. voltage range input (V) | 800.00 |
| Total number of string inputs | 3 |
| Surge protection DC | type 2 |
| Max. input current DC (A) total | 37.50 |
| Contact ripple control receiver | yes |
| Backup system light | yes |
| Max. short circuit current (A) total | 60.00 |
| Shadow management | yes |
| Manufacturer item name | Home Storage 16.4*STP 10.0 Smart Energy |
|---|---|
| Dangerous goods transportation category | 2 |
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Manufacturer | SMA |
| Intrastat product number (HS-code) | 85076000 |
| Dangerous goods Weight (net) (kg) | 190.000 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| Intrastat country of origin | South Korea |
| UN No. | 3480 |
| Weight without packaging (kg) | 215.300 |
|---|
