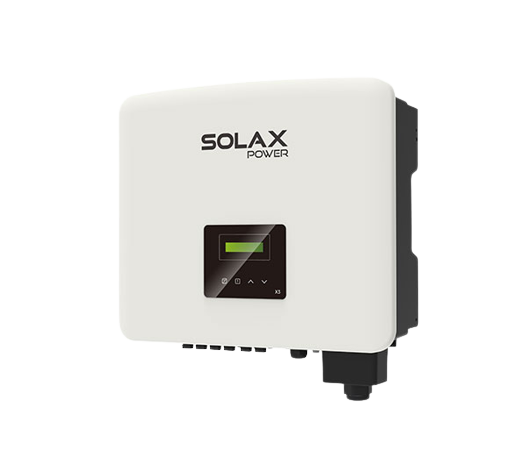

X3-PRO-12K-G2
Product information "X3-PRO-12K-G2"
***Pocket Wifi Interface V3.0 (Krannich item 8251804), Pocket Wifi Interface V3.0-P (inclusive antenna / Krannich item 8251805) or Pocket Lan Interface V3.0 (Krannich item 8251803) are recommended for registering the system in Solax Monitoring***
***After registering the product in Solax Cloud Monitoring via Wifi or Lan, Solax provides an additional 5-year parts warranty free of charge***
***The device has a shadow management to increase the system yields***
High-efficiency:
- Maximum efficiency is up to 98.5%
- Low startup voltage, ultrawide MPPT voltage range
- 150% oversizing, 110% overloading output
- Built-in shadow tracking function
Safe:
- SPD type II protection both AC&DC
- ARC protection (optional available)
- IP66 protection
Smart:
- Built-in export power control
- Intelligent load management - heat pump (optional available)
- 24 hours operation monitoring
- Multiple monitoring methods, Pocket WiFi (optional available)/LAN (optional available)/4G (optional available)
Economic:
- Ultra-high power density
- Maximum 16A DC input current, support high power solar panel
Technical details
| Topology | transformerless |
|---|---|
| Max. output current (A) | 19.30 |
| Protection degree | IP66 |
| Number of independent MPPT (pcs) | 2 |
| Start input voltage (V) | 200 |
| Max. AC power (kVA) | 13.20 |
| Display | with display |
| Max. input current DC (A) total | 64.00 |
| Arc Fault Circuit Interrupter | no |
| MPP max. voltage range input (V) | 980.00 |
| AC nominal power (kW) | 12.00 |
| Surge protection AC | type 2 |
| Degree of protection IP | IP66 |
| Interface 1 | RS485 |
| Total number of string inputs | 4 |
| Max. short circuit current per MPPT (A) | 40 |
| Step-Up converter | yes |
| Decibel | 35 |
| Max. input current per MPPT (A). | 32 |
| Max. efficiency (%) | 98.20 |
| MPP min. voltage range input (V) | 160.00 |
| Integrated DC switch | yes |
| Min. temperature ambient (°C) | -30 |
| Max. input voltage DC (V) | 1100.00 |
| Surge protection DC | type 2 |
| Max. generator power DC (kWp) | 18.00 |
| Max. short circuit current (A) total | 80.00 |
| European efficiency (%) | 97.70 |
| Intrastat country of origin | China |
|---|---|
| Manufacturer | SolaX Power |
| Intrastat product number (HS-code) | 85044086 |
| Manufacturer item name | X3-PRO-12.0K-T-D |
| Length incl. packaging (cm) | 59.00 |
|---|---|
| Pal. weight (kg) | 710.00 |
| Weight incl. packaging (Kg) | 28.500 |
| Pal. dim. LxBxH (mm) | 1200x1080x2050 |
| Width incl. packaging (cm) | 53.00 |
| Amount per Pallet | 24 |
| Height incl. packaging (cm) | 31.50 |
| Weight without packaging (kg) | 24.500 |
|---|---|
| Height without packaging (mm) | 181.00 |
| Length without packaging (mm) | 417.00 |
| Width without packaging (mm) | 482.00 |
| Product warranty (yr) | 5 |
|---|---|
| Warranty provider | SolaX Power |
