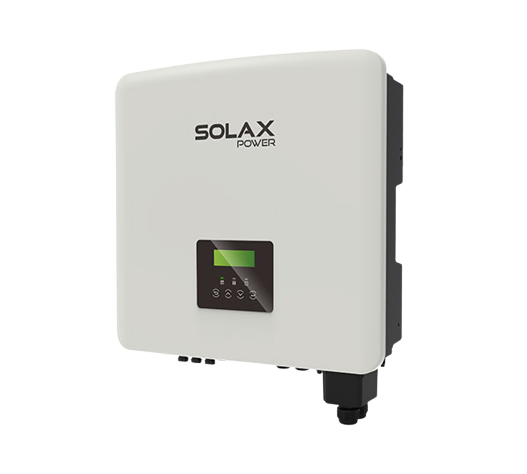

X3-HYBRID-5.0-D G4.2
Product information "X3-HYBRID-5.0-D G4.2"
***Pocket Wifi Interface V3.0 (Krannich item 8251804), Pocket Wifi Interface V3.0-P (inclusive antenna / Krannich item 8251805) or Pocket Lan Interface V3.0 (Krannich item 8251803) are recommended for registering the system in Solax Monitoring***
***The device features shadow management to increase system yields***
High-efficient:
- 150% PV oversized and 110% overload output
- Maximum 150% overload output
- Higher efficiency on charging and discharging, up to 97.5%
- Built-in shadow tracking function
Economic:
- Maximum 16A DC input current, support for high power solar panel
- Store the surplus energy from PV to battery
- Low start output voltage makes inverter longer working time
- Less energy loss on battery to inverter
Intelligent:
- Switchover time <10ms
- Quick configuration with U-disk
- Lithium & Lead-acid battery compatible
- CT compatible, loads respond within 0.3s
- Intelligent loads management (e.g. Heat pump)
- On & Off-grid parallel function, up to 15kW
- 5 work modes, 2 charging periods available
- VPP ready, ancillary service in power market
- Three-phase unbalanced output 50% nominal output power on single phase at most
Safe:
- IP65 protection level
- Integrated SPD
Technical details
| Topology | transformerless |
|---|---|
| Max. output current (A) | 8.10 |
| Protection degree | IP65 |
| Number of independent MPPT (pcs) | 2 |
| Start input voltage (V) | 200 |
| Display | with display |
| Max. short circuit current (A) total | 40.00 |
| Arc Fault Circuit Interrupter | no |
| Total number of string inputs | 2 |
| Min. temperature ambient (°C) | -35 |
| Max. input voltage DC (V) | 1000.00 |
| Max. input current DC (A) total | 32.00 |
| Battery connection | DC |
| AC nominal power (kW) | 5.00 |
| MPP max. voltage range input (V) | 950.00 |
| Step-Up converter | yes |
| Charging current (A) | 30.00 |
| Decibel | 35 |
| Max. short circuit current per MPPT (A) | 20,0 |
| Max. efficiency (%) | 98.00 |
| Degree of protection IP | IP65 |
| MPP min. voltage range input (V) | 180.00 |
| Max. AC power (kVA) | 5.50 |
| Max. generator power DC (kWp) | 10.00 |
| Max. input current per MPPT (A). | 16,0 |
| Charging voltage (V) | 180V-800V |
| European efficiency (%) | 97.70 |
| Intrastat country of origin | China |
|---|---|
| Manufacturer | SolaX Power |
| Intrastat product number (HS-code) | 85044085 |
| Manufacturer item name | X3-HYBRID-5.0-D |
| Pal. dim. LxBxH (mm) | 650X1150x2100 |
|---|---|
| Height incl. packaging (cm) | 32.50 |
| Pack. material | cardboard box |
| Weight incl. packaging (Kg) | 34.500 |
| Pal. weight (kg) | 452.00 |
| Width incl. packaging (cm) | 56.00 |
| Length incl. packaging (cm) | 62.50 |
| Amount per Pallet | 10 |
| Weight without packaging (kg) | 30.000 |
|---|---|
| Length without packaging (mm) | 503.00 |
| Height without packaging (mm) | 199.00 |
| Width without packaging (mm) | 503.00 |
| Warranty provider | SolaX Power |
|---|---|
| Product warranty (yr) | 10 |
