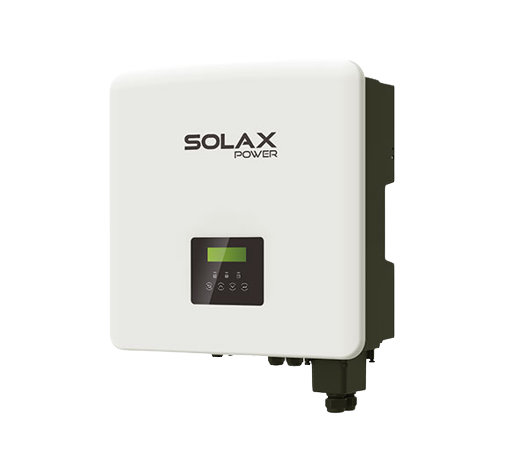

X3-FIT-10.0-W G4
Product information "X3-FIT-10.0-W G4"
***Pocket Wifi Interface V3.0 (Krannich item 8251804), Pocket Wifi Interface V3.0-P (inclusive antenna / Krannich item 8251805) or Pocket Lan Interface V3.0 (Krannich item 8251803) are recommended for registering the system in Solax Monitoring***
High-efficient:
- 110% overload output in on-grid situation
- Maximum 150% overload output in off-grid situation for one hour
- Higher efficiency on charging and discharging, up to 98.5%
Economic:
- Store the surplus energy to battery
- Less energy loss on battery to inverter
Intelligent:
- Switchover time <10ms
- Quick configuration with U-disk
- Lithium & Lead-acid battery compatible
- CT compatible, loads respond within 0.3s
- Intelligent loads management (e.g. heat pump)
- On & Off-grid parallel function, up to 150kW
- 5 work modes, 2 charging periods available
- VPP ready, ancillary service in power market
Safe:
- IP65 protection level
- Integrated SPD
Technical details
| Topology | transformerless |
|---|---|
| Max. AC power (kVA) | 11.00 |
| Protection degree | IP65 |
| AC nominal power (kW) | 10.00 |
| Display | with display |
| Arc Fault Circuit Interrupter | no |
| Min. temperature ambient (°C) | -35 |
| Interface 1 | RS485 |
| Max. efficiency (%) | 98.50 |
| Decibel | 45 |
| Charging current (A) | 30.00 |
| Max. output current (A) | 16.10 |
| Degree of protection IP | IP65 |
| Charging voltage (V) | 180V-800V |
| Intrastat country of origin | China |
|---|---|
| Manufacturer | SolaX Power |
| Intrastat product number (HS-code) | 85044086 |
| Manufacturer item name | X3-FIT-10.0-W |
| Pal. weight (kg) | 364.40 |
|---|---|
| Weight incl. packaging (Kg) | 35.100 |
| Pal. dim. LxBxH (mm) | 1140x630x1858 |
| Amount Pal. p. Cont. | 36 |
| Amount p. Cont. | 432 |
| Height incl. packaging (cm) | 32.50 |
| Amount per Pallet | 12 |
| Pack. material | cardboard box |
| Width incl. packaging (cm) | 56.00 |
| Length incl. packaging (cm) | 62.50 |
| Weight without packaging (kg) | 30.000 |
|---|---|
| Length without packaging (mm) | 503.00 |
| Height without packaging (mm) | 199.00 |
| Width without packaging (mm) | 503.00 |
| Warranty provider | SolaX Power |
|---|---|
| Product warranty (yr) | 10 |
