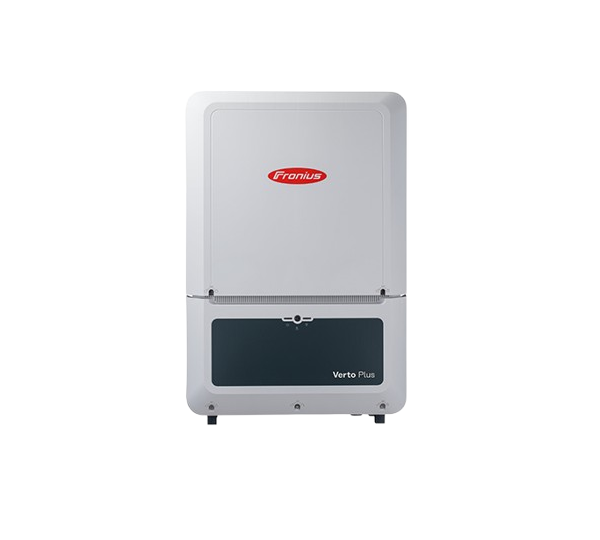

Verto Plus 33.0
Product information "Verto Plus 33.0"
As with the Fronius GEN24 devices, the ‘plus’ makes all the difference in the new Verto series. The Verto Plus hybrid inverters are already equipped with a powerful high-voltage storage connection ex works. With 15 to 33 kW, they are the ideal system modules in the small-commercial segment. The proven complete communication equipment is complemented by AC and DC-side overvoltage protection and Fronius Arc Guard Technology. High security standards are also set for data backup with servers in Europe.
Product advantages:
- 28 A input current per MPPT / string
- 50 A charging current to the high-voltage storage system
- 3-phase backup current possible with Fronius Backup Switch + Controller
Product features:
- AC nominal power: 33.0 kW
- Grid connection: 3-phase
- AC grid voltage: 400 V
- Number of MPPT: 3
- Max. DC input voltage: 1000 V
- Max. DC input current: 28 A per MPPT
- DC overvoltage protection: Type 1+2
- AC overvoltage protection: Type 2
- DC connector type: PV - Stäubli MC4, Bat - Stäubli MC4 Evo Stor
- Number of battery connections: 1
- Communication: WLAN, Ethernet
- Interfaces: 2 x RS485, 6 x DI (FRE), 6 x DO
- Protection class: IP66
- Cooling: active
- Weight: 43.0 kg
- Dimensions: 865 x 574 x 279 mm (H x W x D)
- Warranty: 2.5 years + a further 5 years after free registration
Technical details
| DC connector type | MC4 |
|---|---|
| Min. voltage range input (V) | 150 |
| Max. input current DC (A) total | 84.00 |
| MPP min. voltage range input (V) | 410.00 |
| Max. generator power DC (kWp) | 50.00 |
| Total number of string inputs | 6 |
| AC nominal power (kW) | 33.30 |
| Min. temperature ambient (°C) | -25 |
| Protection degree | IP66 |
| Start input voltage (V) | 150 |
| MPP max. voltage range input (V) | 870.00 |
| Number of independent MPPT (pcs) | 3 |
| Max. input voltage DC (V) | 1000.00 |
| Surge protection AC | type 2 |
| Max. AC power (kVA) | 33.30 |
| Battery connection | DC |
| Max. output current (A) | 50.50 |
| Battery voltage | High Voltage |
| Max. short circuit current per MPPT (A) | 50 |
| Max. input current per MPPT (A). | 28 |
| Max. short circuit current (A) total | 150.00 |
| Surge protection DC | type 1 and type 2 |
| Manufacturer item name | VERTO PLUS 33.3 |
|---|---|
| Intrastat product number (HS-code) | 85044086 |
| Manufacturer | Fronius |
| Intrastat country of origin | Austria |
| Weight incl. packaging (Kg) | 50.700 |
|---|---|
| Amount per Pallet | 4 |
| Width incl. packaging (cm) | 66.00 |
| Height incl. packaging (cm) | 40.20 |
| Pack. material | cardboard box |
| Length incl. packaging (cm) | 95.50 |
| Height without packaging (mm) | 279.00 |
|---|---|
| Length without packaging (mm) | 865.00 |
| Weight without packaging (kg) | 43.000 |
| Width without packaging (mm) | 574.00 |
| Warranty provider | Fronius |
|---|
