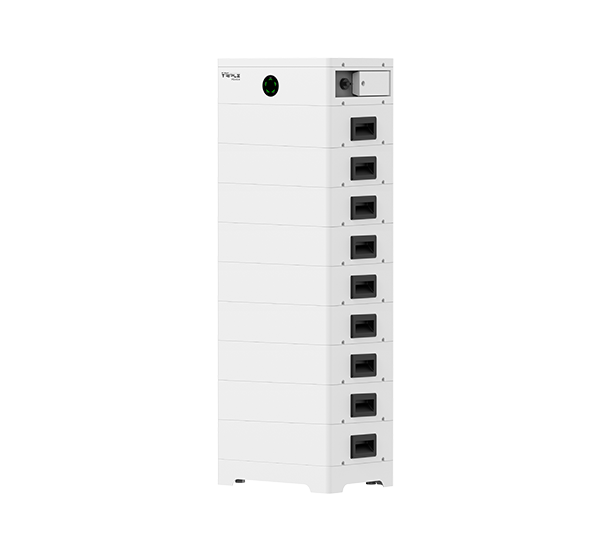

T-BAT-SYS-HV-S22.5
Product information "T-BAT-SYS-HV-S22.5"
ATTENTION:
UN 3480 lithium-ion batteries, 9, (E)
Transport category 2
The new T-BAT SYS-HV-S high-voltage storage series enables a usable capacity of up to 29.9 kWh per unit. This makes it the ideal combination for the new X3-Ultra hybrids with 15 to 30 kW. But this memory can also be operated on previous, smaller systems. Fast, wireless installation and unlimited expansion are a big plus.
Product advantages:
• Proven wireless stacking design
• Up to 13 memory modules per unit
• Updates and diagnostics via the inverter
Product features memory:
• Battery capacity (usable): 20.7 kWh
• Time window extension: unlimited
• Structure per unit: 2 to 13 battery modules
• Cell chemistry: LFP
• Rated voltage: 460.8V
• Protection class: IP65
• Dimensions: 1460 x 510 x 365 mm (HxWxD)
• Weight: Storage - 9 x 28.0 kg; BMS – 10.0kg
Downloads
-
MASTER BOX MCS08008255372
-
T-BAT-SYS-HV-S2.58255103
Technical details
| Usable capacity (kWh) | 20.70 |
|---|---|
| Protection degree | IP65 |
| Nominal voltage DC (V) | 460.80 |
| Max. output current discharging (A) | 45.00 |
| Battery voltage | High Voltage |
| Battery cell chemistry | LFP |
| Max. output current charging (A) | 45.00 |
| Intrastat country of origin | China |
|---|---|
| Hazardous goods transportation category | 2 |
| Manufacturer | SolaX Power |
| Hazardous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Intrastat product number (HS-code) | 85076000 |
| Hazardous goods class | 9 |
| Manufacturer item name | T-BAT-SYS-HV-S2.5*MCS0800 |
| Hazardous goods packaging type | 4G |
| Hazardous goods Weight (net) (kg) | 158.400 |
| UN No. | 3480 |
| Weight incl. packaging (Kg) | 324.500 |
|---|
| Weight without packaging (kg) | 262.000 |
|---|
| Warranty provider | SolaX Power |
|---|
