T-BAT H 12.0 + X3-Hybrid 15.0-D G4.2

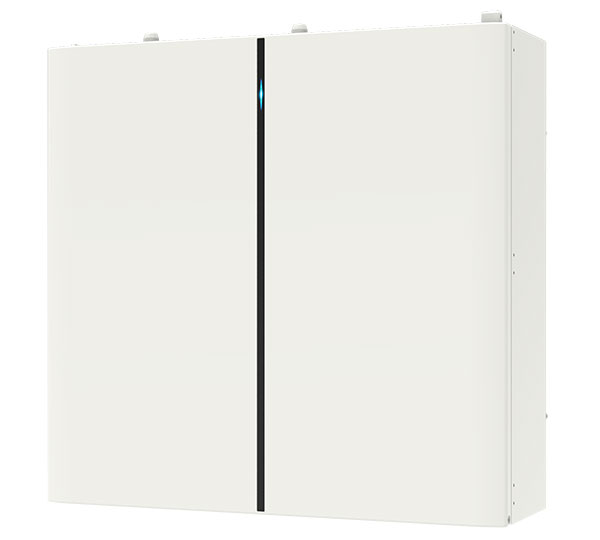

With the Solax T-BAT H 3.0 high-voltage battery, ideal storage sizes of up to 12.0 kWh can be put together for the residential sector. Thanks to the individual capacity of 3.0 kWh, this can be done in small steps and with a precise fit. With a depth of only 148 mm, the storage unit can be installed anywhere. And in combination with the Solax Mate Box for automatic backup power switching, even as a complete unit including inverter. These shine in the 3-phase X3 series with a power range from 5 to 15 kW and can be used in any type of application, including true stand-alone operation.

Product advantages:

• Secure compatibility through unified manufacturer

• Emergency power with UPS function < 10ms

• High input current per MPPT

• Up to 5 systems cascadable

• Proven ultra-flat stack design

• Cascadable up to 4 battery modules

• Updates and diagnostics via the inverter

Product Features System:

• AC power: 15.0 kW

• Number of MPPT: 2

• DC input current: 28A MPPT 1 + 16A MPPT 2

• AC connection: 3-phase

• Communication: Wifi, LAN (opt.), RS485

• Protection class: IP65

• Cooling: active

• Dimensions: 503 x 503 x 199 mm (W x H x D)

• Weight: 30.0 kg

Product features Storage:

• Battery capacity (usable): 11.0 kWh

• Time window extension: up to 1 year

• Cascadable: up to 4 battery modules

• Cell chemistry: LFP

• Rated voltage: 360 - 464 V

• Protection class: IP65

• Dimensions: 1178 + 1044 x 482 x 148 mm (H x W x D)

• Weight: BMS + base: 7.5 kg, 4 x storage 34.5 kg each

Conclusion:

With a broad performance spectrum and flexible memory sizes, the right package can be found here for every application.

Scope of delivery:

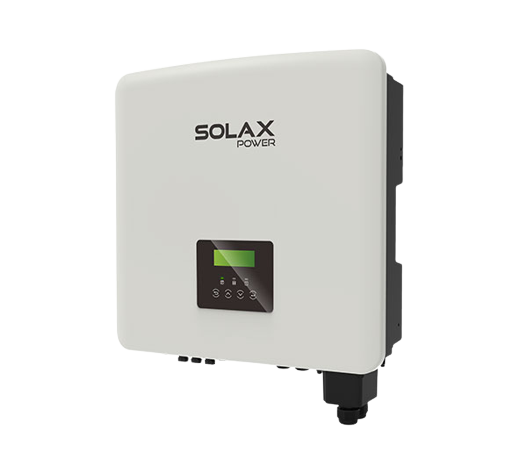

• 1 x Solax X3-Hybrid 15.0-D G4.2 (item 8251789)

• 1 x Solax Meter DTSU666-D (item 8228464)

• 1 x Solax MC0600 BCU + socket (item 8254795)

• 4 x Solax HV10230 battery module (item 8252297)

• 1 x Solax accessory T-BAT H 3.0 (item 8246193)

• 1 x Solax T-BAT H 3.0 connection cable 1.2m (item 8246195)
