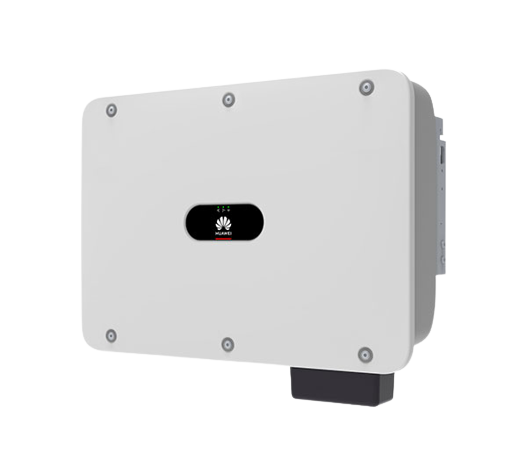

SUN2000-50KTL-M3
Three-phase inverter
Art. no.
8252841
Manufacturer No.
01075485-058
Product details
Product information "SUN2000-50KTL-M3"
***Communication with Internet/Ethernet via WLAN-FE Dongle (8233271); with 4G/3G/2G using 4G dongle (8231549)***
***Smart dongles are not included!***
Smart:
- Intelligent string monitoring (8 strings)
Efficient:
- Max. efficiency 98.5%
Secure:
- Fuse-free design
Reliable:
- Type II arrester for DC & AC
The scope of delivery includes:
- PV connectors
- Bluetooth dongle
- Bracket
Technical details
| Max. short circuit current (A) total | 160.00 |
|---|---|
| Total number of string inputs | 8 |
| Max. AC power (kVA) | 55.00 |
| Max. generator power DC (kWp) | 50.00 |
| Topology | transformer |
| Min. temperature ambient (°C) | -25 |
| Protection degree | IP66 |
| Start input voltage (V) | 200 |
| Number of independent MPPT (pcs) | 4 |
| Surge protection AC | type 2 |
| Degree of protection IP | IP66 |
| Interface 1 | RS485 |
| Max. efficiency (%) | 98.50 |
| European efficiency (%) | 98.00 |
| Max. short circuit current per MPPT (A) | 40 |
| Step-Up converter | yes |
| Display | w/o display |
| Min. voltage range input (V) | 600 |
| MPP min. voltage range input (V) | 200.00 |
| Integrated DC switch | yes |
| Max. input current per MPPT (A). | 30 |
| Max. input current DC (A) total | 20.00 |
| Max. input voltage DC (V) | 1100.00 |
| Surge protection DC | type 2 |
| DC connector type | H4Amphenol |
| Arc Fault Circuit Interrupter | yes |
| Max. output current (A) | 79.80 |
| MPP max. voltage range input (V) | 1000.00 |
| AC nominal power (kW) | 50.00 |
| Intrastat country of origin | China |
|---|---|
| Intrastat product number (HS-code) | 85044086 |
| Manufacturer | Huawei |
| Manufacturer item name | SUN2000-50KTL-M3 |
| Weight incl. packaging (Kg) | 58.000 |
|---|---|
| Width incl. packaging (cm) | 73.00 |
| Height incl. packaging (cm) | 38.00 |
| Length incl. packaging (cm) | 75.00 |
| Pal. dim. LxBxH (mm) | 770x770x1260 |
| Amount per Pallet | 3 |
| Pack. material | cardboard box |
| Width without packaging (mm) | 530.00 |
|---|---|
| Weight without packaging (kg) | 49.000 |
| Height without packaging (mm) | 270.00 |
| Length without packaging (mm) | 640.00 |
| Product warranty (yr) | 5 |
|---|---|
| Warranty provider | Huawei |
