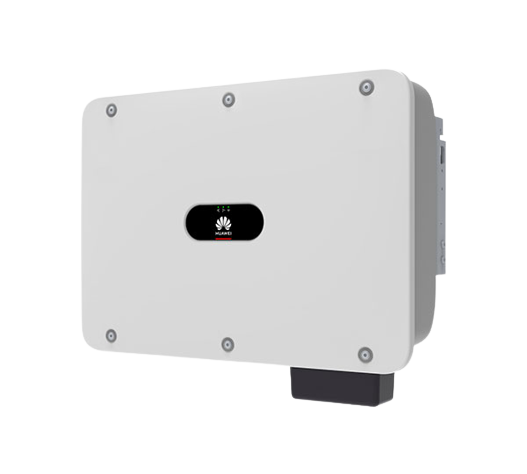

SUN2000-36KTL-M3 (27A)
String inverter
Art. no.
8252572
Manufacturer No.
01075485-071
Product details
Product information "SUN2000-36KTL-M3 (27A)"
***Communication with Internet/Ethernet via WLAN-FE dongle (8233271); with 4G/3G/2G using 4G dongle (8231549)***
***Smart dongles are not included in the scope of delivery!***
Smart:
- 8 strings intelligent monitoring
Efficient:
- Max. efficiency 98.7%
Safe:
- Fuse free design
Reliable:
- Type II surge arresters for DC & AC
The scope of delivery includes:
- PV connectors Amphenol
- Bluetooth-Dongle
- bracket
Technical details
| Topology | transformerless |
|---|---|
| Max. short circuit current (A) total | 160.00 |
| DC connector type | MC4 |
| Total number of string inputs | 8 |
| Max. output current (A) | 58.00 |
| Min. temperature ambient (°C) | -25 |
| Max. input current DC (A) total | 108.00 |
| Protection degree | IP66 |
| Max. input current per MPPT (A). | 27 |
| Start input voltage (V) | 200 |
| Number of independent MPPT (pcs) | 4 |
| Degree of protection IP | IP66 |
| Interface 1 | RS485 |
| Max. short circuit current per MPPT (A) | 40 |
| Step-Up converter | yes |
| Display | w/o display |
| Max. generator power DC (kWp) | 54.00 |
| MPP min. voltage range input (V) | 200.00 |
| Integrated DC switch | yes |
| Max. AC power (kVA) | 40.00 |
| European efficiency (%) | 98.40 |
| Max. input voltage DC (V) | 1100.00 |
| Contact ripple control receiver | yes |
| Arc Fault Circuit Interrupter | yes |
| AC nominal power (kW) | 36.00 |
| Max. efficiency (%) | 98.70 |
| MPP max. voltage range input (V) | 1000.00 |
| Intrastat country of origin | China |
|---|---|
| Intrastat product number (HS-code) | 85044086 |
| Manufacturer item name | SUN2000-36KTL-M3 |
| Manufacturer | Huawei |
| Weight incl. packaging (Kg) | 51.000 |
|---|---|
| Width incl. packaging (cm) | 73.00 |
| Height incl. packaging (cm) | 38.00 |
| Length incl. packaging (cm) | 75.00 |
| Pal. weight (kg) | 170.00 |
| Amount per Pallet | 3 |
| Pack. material | cardboard box |
| Pal. dim. LxBxH (mm) | 770x770x1230 |
| Length without packaging (mm) | 530.00 |
|---|---|
| Weight without packaging (kg) | 43.000 |
| Width without packaging (mm) | 640.00 |
| Height without packaging (mm) | 270.00 |
| Product warranty (yr) | 5 |
|---|---|
| Warranty provider | Huawei |
