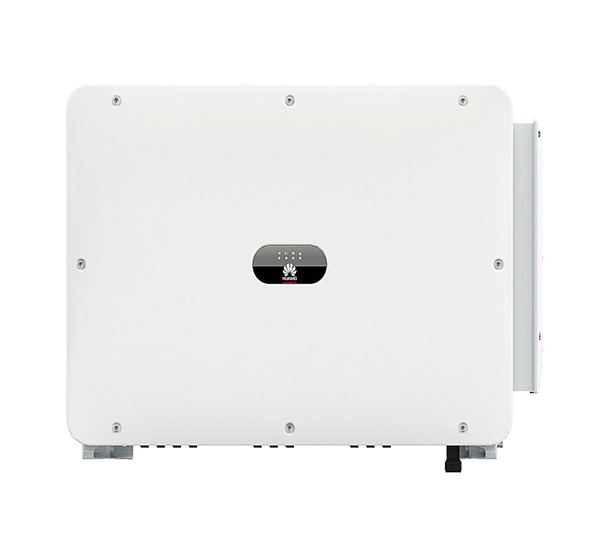

SUN2000-150K-MG0, string inverter
Product information "SUN2000-150K-MG0, string inverter"
The 150K-MG0 closes another gap in Huawei's broad portfolio. With connection to the 400 volt low-voltage grid in accordance with the new VDE-AR-N 4105, integrated overvoltage protection and arc detection. The 7 MPP trackers, each with an input current of 48 amps and up to 3 monitored connections, provide the necessary flexibility for this power class.
Product advantages:
- 48 A DC input current per MPPT
- Integrated arc detection
- AC+DC overvoltage protection type 2
Product features:
- AC power: 150.0 kW
- DC input voltage: 1100 V
- DC input current: 48 A per MPPT
- Number of MPPT: 7
- DC connections per MPPT: 3
- AC connection: 3-phase
- Communication: RS485, Wifi / 4G (optional)
- Protection class: IP66
- Cooling: active
- Dimensions: 710 x 1000 x 395 mm (H x W x D)
- Weight: 96.0 kg
Technical details
| Topology | transformerless |
|---|---|
| Min. temperature ambient (°C) | -25 |
| Protection degree | IP66 |
| Start input voltage (V) | 200 |
| Max. generator power DC (kWp) | 150.00 |
| Surge protection AC | type 2 |
| Degree of protection IP | IP66 |
| Interface 1 | RS485 |
| Total number of string inputs | 21 |
| Min. voltage range input (V) | 600 |
| Max. input current per MPPT (A). | 483 |
| Max. output current (A) | 253.20 |
| AC nominal power (kW) | 150.00 |
| Max. short circuit current per MPPT (A) | 66 |
| MPP min. voltage range input (V) | 200.00 |
| Max. input current DC (A) total | 336.00 |
| Max. efficiency (%) | 98.80 |
| European efficiency (%) | 98.40 |
| Max. input voltage DC (V) | 1100.00 |
| Surge protection DC | type 2 |
| Grid protection | yes |
| DC connector type | H4Amphenol |
| Arc Fault Circuit Interrupter | yes |
| Number of independent MPPT (pcs) | 7 |
| MPP max. voltage range input (V) | 1000.00 |
| Max. AC power (kVA) | 165.00 |
| Intrastat country of origin | China |
|---|---|
| Intrastat product number (HS-code) | 85044086 |
| Manufacturer | Huawei |
| Manufacturer item name | SUN2000-150K-MG0 |
| Weight incl. packaging (Kg) | 96.000 |
|---|---|
| Amount per Pallet | 2 |
| Pack. material | cardboard box |
| Height without packaging (mm) | 395.00 |
|---|---|
| Width without packaging (mm) | 710.00 |
| Length without packaging (mm) | 1000.00 |
| Weight without packaging (kg) | 96.000 |
| Product warranty (yr) | 5 |
|---|---|
| Warranty provider | Huawei |
