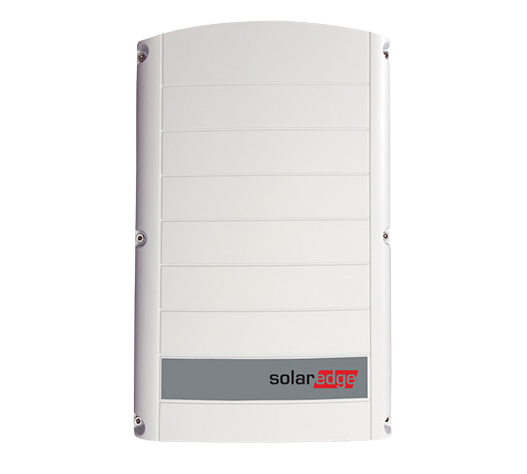

SE4K SETAPP (FOR SHORT PV-STRINGS)
Inverter for connecting short PV strings
Art. no.
8234308
Manufacturer No.
SE4K-RWBTEBEN4
Product details
Product information "SE4K SETAPP (FOR SHORT PV-STRINGS)"
**available in some countries; refer to Certifications category in Downloads page: https://www.solaredge.com/de/downloads#/ **
***currently available for Poland, Germany, Netherlands, Belgium, Hungary, Austria, Switzerland, Sweden***
The ideal solution for small-scale residential PV systems
- Greater design flexibility by enabling significantly shorter strings for low power three phase PV systems
- Optimized for installations with complex roofs (multi-facets and different orientations)
- Supports optional smart energy devices and expansion of system capabilities
- Single vendor solution for seamless operation of all system components, and one address for warranty and service issues
- Built-in module-level monitoring for greater visibility into system performance
- Excellent reliability with standard 12-year warranty
- Advanced safety features, including touch-safe DC voltage when the inverter is off or disconnected
- Quick inverter commissioning directly from the SetApp smartphone app
- Suitable for outdoor or indoor installations
Technical details
| Topology | transformerless |
|---|---|
| DC connector type | MC4 |
| Max. efficiency (%) | 97.80 |
| Max. input voltage DC (V) | 450.00 |
| Decibel | 50 |
| Min. temperature ambient (°C) | -40 |
| Step-Up converter | no |
| Protection degree | IP65 |
| AC nominal power (kW) | 4.00 |
| Arc Fault Circuit Interrupter | no |
| Total number of string inputs | 2 |
| Max. AC power (kVA) | 4.00 |
| Max. generator power DC (kWp) | 5.40 |
| European efficiency (%) | 95.70 |
| Interface 1 | RS485 |
| Display | w/o display |
| Max. input current DC (A) total | 11.50 |
| Degree of protection IP | IP65 |
| Interface 2 | Ethernet |
| Intrastat country of origin | Israel |
|---|---|
| Intrastat product number (HS-code) | 85044085 |
| Manufacturer | SolarEdge |
| Manufacturer item name | SE4K-RWB |
| Pal. dim. LxBxH (mm) | 1200x800x2050 |
|---|---|
| Height incl. packaging (cm) | 38.00 |
| Length incl. packaging (cm) | 70.00 |
| Weight incl. packaging (Kg) | 26.500 |
| Pack. material | cardboard box |
| Amount per Pallet | 15 |
| Width incl. packaging (cm) | 40.00 |
| Weight without packaging (kg) | 24.500 |
|---|---|
| Length without packaging (mm) | 540.00 |
| Width without packaging (mm) | 315.00 |
| Height without packaging (mm) | 260.00 |
| Product warranty (yr) | 12 |
|---|---|
| Warranty provider | SolarEdge |
