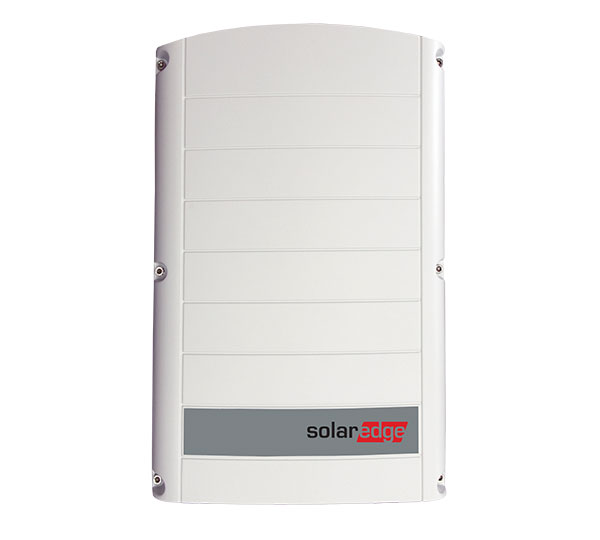

SE20K SETAPP (ONLY FOR NL/IT/SWE)
Inverter for Module Optimizer
Art. no.
8249965
Manufacturer No.
SE20K-RW00IBNM4
Product details
Product information "SE20K SETAPP (ONLY FOR NL/IT/SWE)"
***currently only certified for the Netherlands, Italy and Sweden***
Specifically designed to work with power optimizers
- Superior efficiency (98%)
- Quick and easy inverter commissioning directly from a smartphone using the SolarEdge SetApp
- Small, lightest in its class, and easy to install
- Built-in module-level monitoring
- Internet connection through Ethernet or Wireless
- IP65 – Outdoor and indoor installation
- Fixed voltage inverter for longer strings
- Smart Energy Management control
- Advanced safety features - integrated arc fault protection (AFCI)
- Optional RS485 surge protection (sold separately)
Technical details
| Topology | transformerless |
|---|---|
| Max. generator power DC (kWp) | 30.00 |
| DC connector type | MC4 |
| Min. temperature ambient (°C) | -40 |
| Step-Up converter | no |
| Protection degree | IP65 |
| Max. input current DC (A) total | 29.00 |
| Max. input voltage DC (V) | 1000.00 |
| Interface 1 | RS485 |
| Max. AC power (kVA) | 20.00 |
| Total number of string inputs | 4 |
| Decibel | 62 |
| Display | w/o display |
| Max. efficiency (%) | 98.00 |
| Degree of protection IP | IP65 |
| AC nominal power (kW) | 20.00 |
| Surge protection DC | type 2 |
| Interface 2 | Ethernet |
| Arc Fault Circuit Interrupter | yes |
| Min. voltage range input (V) | 680 |
| European efficiency (%) | 97.70 |
| Intrastat country of origin | Israel |
|---|---|
| Intrastat product number (HS-code) | 85044086 |
| Manufacturer | SolarEdge |
| Manufacturer item name | SE20K for Europe |
| Weight incl. packaging (Kg) | 36.500 |
|---|---|
| Height incl. packaging (cm) | 38.00 |
| Amount per Pallet | 16 |
| Pal. dim. LxBxH (mm) | 1200x800x1650 |
| Length incl. packaging (cm) | 60.00 |
| Pack. material | cardboard box |
| Width incl. packaging (cm) | 40.00 |
| Weight without packaging (kg) | 32.000 |
|---|---|
| Width without packaging (mm) | 317.00 |
| Height without packaging (mm) | 273.00 |
| Length without packaging (mm) | 550.00 |
| Product warranty (yr) | 12 |
|---|---|
| Warranty provider | SolarEdge |
