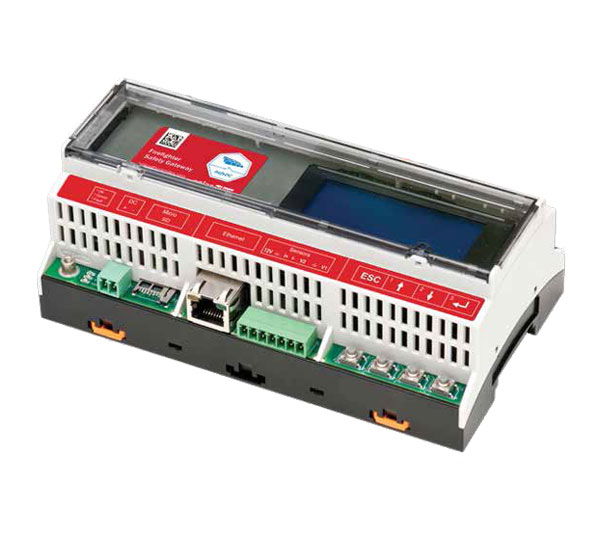

SE1000-CCG-F-S1 FIREFIGHTER SAFETY GATEWAY
Fire department Gateway
Art. no.
8229724
Manufacturer No.
SE1000-CCG-F-S1
Product details
Product information "SE1000-CCG-F-S1 FIREFIGHTER SAFETY GATEWAY"
Central safety management for SolarEdge systems
Power:
- Power Supply - DIN Rail: Included, 100-240VAC, EU/UK/US/AU
- Supply Voltage: 9-14 Vdc
- Connector Type: terminal block
- Power Consumption: <2 W
Communication Interfaces:
- Ethernet Interface: 10/100-BaseT
- Wireless Connections: ZigBee module (*), GSM (*) (**)
- Fire Alarm Control Panel Interface: Alarm input, 5V, GND (***)
- SolarEdge Inverters: RS485
(*) sold separately
(**) EU only
(***) Emergency stop button is not supplied by SolarEdge
Environmental:
- Operating Temperatures: -20 to 60 °C
- Protection Rating: IP20 Indoor
Mechanical:
- Mounting Type: DIN Rail / Wall mount
Standard Compliance:
- Safety: UL60950-1, IEC-60950-1
- EMC: FCC Part 15 class B, IEC61000-6-2, IEC61000-6-3
Power:
- Power Supply - DIN Rail: Included, 100-240VAC, EU/UK/US/AU
- Supply Voltage: 9-14 Vdc
- Connector Type: terminal block
- Power Consumption: <2 W
Communication Interfaces:
- Ethernet Interface: 10/100-BaseT
- Wireless Connections: ZigBee module (*), GSM (*) (**)
- Fire Alarm Control Panel Interface: Alarm input, 5V, GND (***)
- SolarEdge Inverters: RS485
(*) sold separately
(**) EU only
(***) Emergency stop button is not supplied by SolarEdge
Environmental:
- Operating Temperatures: -20 to 60 °C
- Protection Rating: IP20 Indoor
Mechanical:
- Mounting Type: DIN Rail / Wall mount
Standard Compliance:
- Safety: UL60950-1, IEC-60950-1
- EMC: FCC Part 15 class B, IEC61000-6-2, IEC61000-6-3
Technical details
| Display | with display |
|---|
| Intrastat country of origin | China |
|---|---|
| Intrastat product number (HS-code) | 85311095 |
| Manufacturer | SolarEdge |
| Manufacturer item name | SE1000-CCG-F-S1 |
| Weight incl. packaging (Kg) | 0.500 |
|---|---|
| Height incl. packaging (cm) | 12.00 |
| Length incl. packaging (cm) | 16.00 |
| Width incl. packaging (cm) | 25.00 |
| Weight without packaging (kg) | 0.500 |
|---|---|
| Width without packaging (mm) | 90.00 |
| Length without packaging (mm) | 162.00 |
| Height without packaging (mm) | 62.00 |
| Product warranty (yr) | 5 |
|---|---|
| Warranty provider | SolarEdge |
