Goodwe Lynx Home F Plus+ 6.6 H + GW 10KN-ET Plus

In addition to increasing the DC input current to 16 amperes, the latest version of the Goodwe ET plus+ hybrid series has a real, uninterruptible UPS function for the backup connection. In this way, even sensitive consumers can be operated without worries in any network situation. Combined with the new in-house Lynx Home F Plus+ high-voltage storage system, it is a powerful system for home use. And if it is to be a little larger, up to 10 systems can be connected in parallel with the Goodwe SEC1000S Hybrid Box.

Product advantages:

• All components from a single source

• Secure compatibility through uniform manufacturer

• Emergency power with UPS function < 10ms

• 16A input current per MPPT

• Energy meter included with inverter

• Up to 10 systems can be cascaded

Product features system:

• AC power: 10.0 kW

• Number of MPPT: 2

• AC connection: 3-phase

• Communication: Wifi, RS485

• Protection class: IP66

• Cooling: passive

• Weight: 24.0 kg

Product features memory:

• Battery capacity (usable): 6.55 kWh

• Time window extension: up to 2 years

• Cascadable: up to 8 towers in parallel (131 kWh)

• Cell chemistry: LFP

• Rated Voltage: 204.8V

• Protection class: IP55

• Dimensions: 625 x 600 x 380 mm (HxWxD)

• Weight: BMS + base: 29.0 kg, 2/3/4/5 x memory 43.0 kg each

Conclusion:

With the same manufacturer for all system components, many potential problems are dealt with immediately. From automatic storage detection to updates via the same interface. The increase in the input current to an impressive 16A now allows the connection of any standard module without loss of performance. The improved switching of the backup connection, with < 10ms even at UPS level, is also a good announcement.

Scope of delivery:

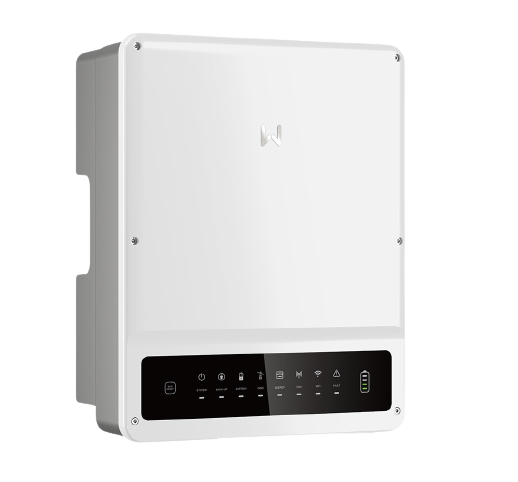

• 1 x GW10KN-ET PLUS (16A) hybrid inverter, incl. meter (item 8252677)

• 1 x Goodwe Lynx Home F BCU (item 8252622)

• 2 x Goodwe Lynx Home F Plus+ memory module (item 8252625)
