Goodwe Lynx Home F Plus 13.1 H + GW8K-BT

Do you want to retrofit your existing system with a storage system? Backup power with UPS functionality and decent storage capacity are on your wish list? Then you are exactly right with this combination from Goodwe. It contains a proven storage inverter from the BT series and the new generation of the powerful Lynx Home F Plus battery. The integrated backup connection has a switching time of <10 ms and is therefore a real UPS function. In this way, even sensitive consumers can be operated without worries in any network situation.

Product advantages:

• All storage components from a single source

• Emergency power with UPS function < 10ms

• Energy meter included with inverter

• Storage cascadable up to 131 kWh

Product features system:

• AC power: 8.0 kW

• AC connection: 3-phase

• Communication: Wifi, LAN, RS485

• Protection class: IP65

• Cooling: passive

• Weight: 21.0 kg

Product features memory:

• Battery capacity (usable): 13.1 kWh

• Time window extension: up to 2 years

• Cascadable: up to 8 towers in parallel (131 kWh)

• Cell chemistry: LFP

• Rated Voltage: 409.6V

• Protection class: IP55

• Dimensions: 935 x 600 x 380 mm (HxWxD)

• Weight: BMS + base: 29.0 kg, 4 x memory 43.0 kg each

Conclusion:

With the same manufacturer for all memory components, many potential problems are dealt with immediately. From automatic battery detection to updates via the same interface. The improved switching of the backup connection, with < 10ms even at UPS level, is also a good announcement.

Set includes:

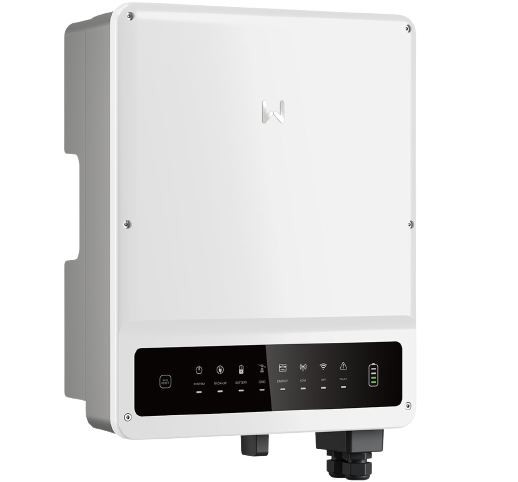

• 1 x GW8K-BT storage inverter, incl. meter (8231664)

• 1 x Goodwe Lynx Home F BCU (item 8252622)

• 4 x Goodwe Lynx Home F memory module (item 8252625)
