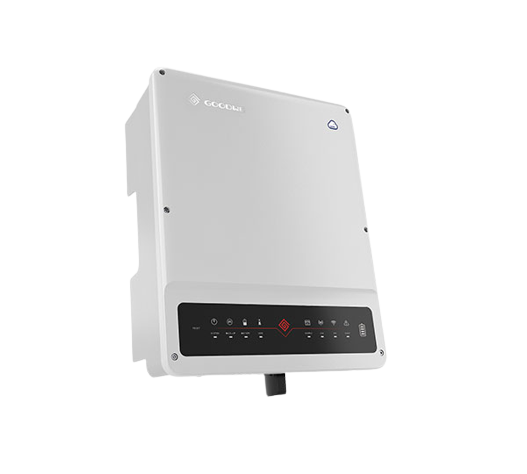

GW6K-BT RETROFIT (+WIFI/3P-METER)
Three-phase AC inverter
Art. no.
8234796
Manufacturer No.
BTU6000-01-00P
Product details
Product information "GW6K-BT RETROFIT (+WIFI/3P-METER)"
AC-coupled solution, which can upgrade existing three-phase PV system to store energy. This solution can modernize any three-phase PV system, providing the ability to store power or operate with the back-up of batteries, ensuring interactivity or grid independence.
It is compatible with high voltage Li-Ion batteries ranging from 180 to 600V and it is also equipped with the UPS function. It can reach a high efficiency of up to 97.5%. It includes a Battery Input Reverse Polarity Protection as part of its set of protections.
The 3-phase meter is enclosed with the inverter
Technical details
| Topology | transformerless |
|---|---|
| Max. output current (A) | 10.50 |
| Step-Up converter | no |
| Protection degree | IP65 |
| Arc Fault Circuit Interrupter | no |
| Min. temperature ambient (°C) | -35 |
| Decibel | 30 |
| Battery connection | AC |
| Max. AC power (kVA) | 6.60 |
| Display | w/o display |
| Degree of protection IP | IP65 |
| Max. efficiency (%) | 97.60 |
| AC nominal power (kW) | 6.00 |
| Intrastat country of origin | China |
|---|---|
| Intrastat product number (HS-code) | 85044085 |
| Manufacturer | GoodWe |
| Manufacturer item name | GW6K-BT |
| Width incl. packaging (cm) | 59.50 |
|---|---|
| Amount per Pallet | 6 |
| Length incl. packaging (cm) | 69.00 |
| Weight incl. packaging (Kg) | 23.000 |
| Height incl. packaging (cm) | 30.40 |
| Weight without packaging (kg) | 21.000 |
|---|---|
| Length without packaging (mm) | 415.00 |
| Width without packaging (mm) | 516.00 |
| Height without packaging (mm) | 180.00 |
| Warranty provider | GoodWe |
|---|---|
| Product warranty (yr) | 5 |
