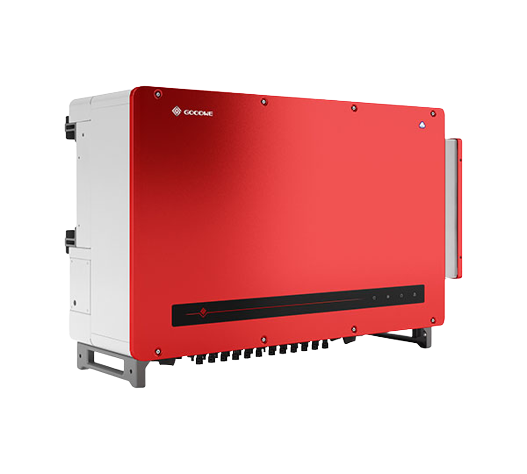

Product information "GW100K-HT (+DC-SWITCH/WIFI)"
The new HT 1100Vdc Series is the ultimate high-power string inverter for the C&I sector. The HT series offers 10 MPPTs, and is compatible with Bi-facial modules, with a higher threshold of DC current (Max. 15A per string). It includes PLC communication, internal humidity detection. Configuration can be easily done via Bluetooth and firmware diagnosis & upgrading can be operated remotely. The HT series seamlessly incorporates different sets of technical strengths designed to achieve higher savings in the installation, enhance productivity and diversify available monitoring options, taking safety to the maximum possible level in accordance with the strictest industry standards.
Technical details
Topology | transformerless |
---|---|
Number of independent MPPT (pcs) | 10 |
DC connector type | MC4 |
Max. AC power (kVA) | 110.00 |
Step-Up converter | no |
Protection degree | IP66 |
Max. short circuit current (A) total | 450.00 |
Max. input current per MPPT (A). | 30,0 |
Start input voltage (V) | 200 |
Max. short circuit current per MPPT (A) | 45,0 |
Arc Fault Circuit Interrupter | no |
Max. generator power DC (kWp) | 150.00 |
Surge protection AC | type 2 |
Degree of protection IP | IP66 |
Interface 1 | RS485 |
Max. efficiency (%) | 98.60 |
Max. output current (A) | 167.00 |
Display | w/o display |
MPP min. voltage range input (V) | 180.00 |
AC nominal power (kW) | 100.00 |
Integrated DC switch | yes |
Max. input current DC (A) total | 300.00 |
Min. temperature ambient (°C) | -30 |
European efficiency (%) | 98.30 |
Max. input voltage DC (V) | 1100.00 |
Total number of string inputs | 20 |
Surge protection DC | type 2 |
MPP max. voltage range input (V) | 1000.00 |
Intrastat country of origin | China |
---|---|
Manufacturer | GoodWe |
Intrastat product number (HS-code) | 85044086 |
Manufacturer item name | GW100K-HT |
Weight incl. packaging (Kg) | 120.000 |
---|---|
Pal. weight (kg) | 260.00 |
Amount per Pallet | 2 |
Pal. dim. LxBxH (mm) | 1210x880x1150 |
Width incl. packaging (cm) | 84.50 |
Pack. material | cardboard box |
Length incl. packaging (cm) | 117.50 |
Height incl. packaging (cm) | 51.50 |
Amount p. Cont. | 88 |
Width without packaging (mm) | 1005.00 |
---|---|
Length without packaging (mm) | 676.00 |
Weight without packaging (kg) | 93.500 |
Height without packaging (mm) | 340.00 |
Warranty provider | GoodWe |
---|---|
Product warranty (yr) | 5 |
