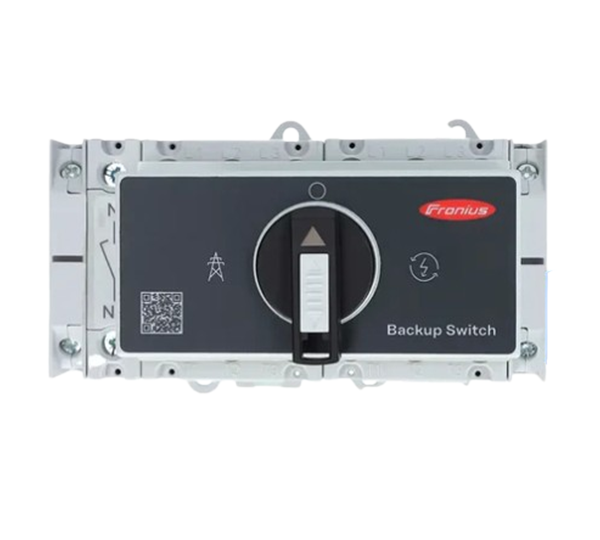

Backup switch for Gen24 plus*
Product information "Backup switch for Gen24 plus*"
Functionality: When the system including backup power consumers is disconnected from the grid, the backup switch releases the inverter for independent operation. Overcurrent and overvoltage protection for the backup power consumers must be installed in a suitable location to maintain the protective function.
A power cut like this is always inconvenient, one quick digger driver and the whole street goes dark. Even if you don't really want to plan for such a situation, the technical possibility of an independent backup power supply creates an unimagined sense of security. The Fronius GEN24 plus series, in both the 1-phase and 3-phase versions, can be supplemented at any time and at low cost with the Fronius Backup Switch. With the manual switch, all important loads are literally supplied with power again in no time at all. For all those for whom 3 kW emergency power via the Fronius PV Point is not quite enough.
Product advantages:
- Can be used for 1- and 3-pole grid connections
- Compatible with all Fronius Primo and Symo GEN24 plus*
- Cost-effective solution with great effect
- Connection of complete house connection possible
Product features:
- Max. Through-current: 63.0 A
- AC connection: 230 V, 1-pole and 400 V, 3-pole
- Type of mains disconnection: all-pole (3P+N)
- Mains type: can be used for all mains types
- Max. Cable cross-section: 16 mm²
- Mounting: on top-hat rail in switch cabinet
- Protection class: IP20
- Dimensions: 7 HP / 91 x 126 x 64 mm (HxWxD)
- Included in the scope of delivery: mandatory information sticker ‘Emergency power supply’
*Due to the design of the Fronius Symo GEN24 3.0 - 5.0 and all Primo GEN24-US versions, a full backup solution cannot be implemented.
Technical details
| Nominal current (A) | 63.00 |
|---|
| Manufacturer item name | Backup Switch 1PN\/3PN-63A |
|---|---|
| Connection type | DC |
| Manufacturer | Fronius |
| Intrastat country of origin | Austria |
| Intrastat product number (HS-code) | 85365080 |
| Width incl. packaging (cm) | 11.00 |
|---|---|
| Weight incl. packaging (Kg) | 0.566 |
| Height incl. packaging (cm) | 8.00 |
| Length incl. packaging (cm) | 15.00 |
| Weight without packaging (kg) | 0.489 |
|---|---|
| Length without packaging (mm) | 135.00 |
| Width without packaging (mm) | 91.00 |
| Height without packaging (mm) | 70.00 |
