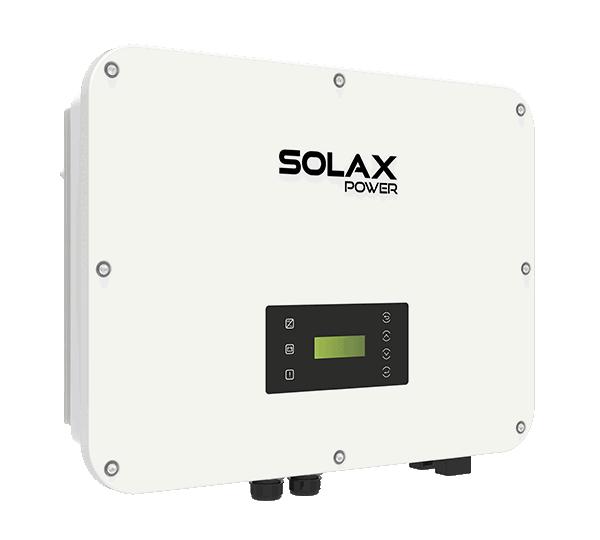

X3-ULTRA-15K (SPD TYPE II/AFCI/WIFI+LAN)
Hybrid inverter, 3-phase
Art-No.
0155097
Manufacturer No.
101014001900
Product details
Product information "X3-ULTRA-15K (SPD TYPE II/AFCI/WIFI+LAN)"
The X3-Ultra hybrids are compatible with the following storages: T-BAT H 3.0, T-BAT H 5.8, T-BAT-SYS-HV-S 2.5 and 3.6.
Solax offers the new X3-Ultra series for XL home systems or XS commercial systems. With performance classes from 15 to 30 kW, high DC input currents and 2 independent battery connections, the high-voltage hybrids are a real statement. Integrated surge protection, AFCI arc detection and interfaces for radio ripple control receivers etc. leave little to be desired. Like the “small” X3 series, the Ultras can also be operated as true off-grid systems with a generator. As a perfect addition, there are also the new HV-S high-voltage storage series with up to 43.1 kWh usable capacity. Thanks to the 2 separate storage connections on the Ultra, up to 86.2 kWh is possible.
Product advantages:
• Ideal for big-residential and small-commercial applications
• Emergency power with UPS function < 10ms
• High input current per MPPT
• 2 independent battery connections
• Integrated arc detection AFCI
• Backup outputs can be cascaded. Required
accessory: X3-EPS Parallelbox-II (item 0157683).
Product features:
• AC power: 15.0 kW
• Number of MPPT: 2
• DC input current: 36A per MPPT
• Battery connections: 2
• Max. charging current storage: 30 A each
• AC connection: 3-phase
• Communication: Wifi, LAN (opt.), RS485
• Interfaces: 5 x DI (FRE), 2 x DO
• Protection class: IP65
• Cooling: active
• Dimensions: 696 x 526 x 240 mm (W x H x D)
• Weight: 47.0 kg
Technical details
| Topology | transformerless |
|---|---|
| Max. generator power DC (kWp) | 30.00 |
| Max. short circuit current per MPPT (A) | 45 |
| Max. output current (A) | 24.00 |
| Interface 2 | W-Lan |
| Protection degree | IP66 |
| Max. short circuit current (A) total | 90.00 |
| Number of independent MPPT (pcs) | 2 |
| Start input voltage (V) | 200 |
| Display | with display |
| Charging current (A) | 60.00 |
| Min. temperature ambient (°C) | -35 |
| Contact for self-consumption optimization (e.g. for heat pump) | 2 |
| Max. input voltage DC (V) | 1000.00 |
| Surge protection AC | type 2 |
| Interface 1 | RS485 |
| Feed-in phases | 3 |
| Total number of string inputs | 4 |
| Min. voltage range input (V) | 160 |
| Battery Connection | AC/DC |
| MPP max. voltage range input (V) | 950.00 |
| Peak shaving | yes |
| Step-Up converter | yes |
| Max. input current per MPPT (A). | 36 |
| Max. efficiency (%) | 98.00 |
| Degree of protection IP | IP65 |
| Max. input current DC (A) total | 72.00 |
| MPP min. voltage range input (V) | 160.00 |
| Integrated DC switch | yes |
| Offgrid usable | yes |
| Surge protection DC | type 2 |
| AC nominal power (kW) | 15.00 |
| Contact ripple control receiver | yes |
| Backup system light | yes |
| Integrated AC switch | no |
| Arc Fault Circuit Interrupter | yes |
| Max. AC power (kVA) | 16.50 |
| Backup system full | yes |
| European efficiency (%) | 97.70 |
| Charging voltage (V) | 180-800 |
| Intrastat country of origin | China |
|---|---|
| Manufacturer | SolaX Power |
| Intrastat product number (HS-code) | 85044084 |
| Manufacturer item name | X3-ULTRA-15K(AFCI) |
| Amount Pal. p. Cont. | 23 |
|---|---|
| Amount per Pallet | 6 |
| Pack. material | cardboard box |
| Length incl. packaging (cm) | 116.80 |
| Height incl. packaging (cm) | 35.20 |
| Amount per big Box | 1 |
| Weight incl. packaging (Kg) | 56.000 |
| Width incl. packaging (cm) | 76.80 |
| Pal. dim. LxBxH (mm) | 1200x800x126 |
| Amount p. Cont. | 138 |
| Width without packaging (mm) | 526.00 |
|---|---|
| Weight without packaging (kg) | 47.000 |
| Length without packaging (mm) | 696.00 |
| Height without packaging (mm) | 240.00 |
| Standard product warranty (yr) | 10 |
|---|---|
| Warranty provider | SolaX Power |
| Product warranty (yr) | 10 |
