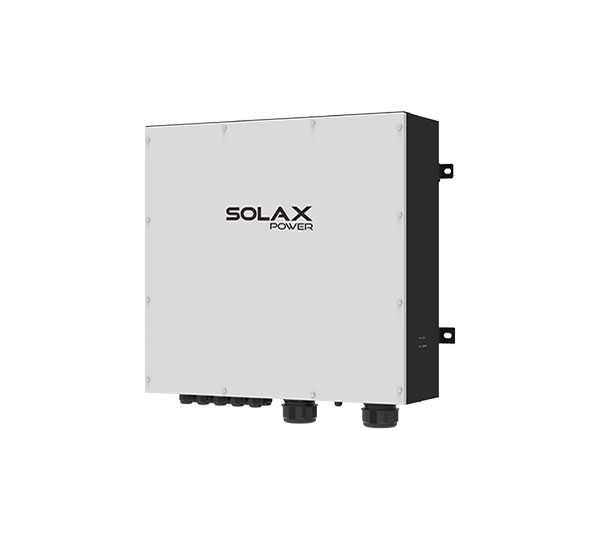

X3-EPS-Parallel-Box 150kW-G2.1
Combiner box for X3-Ultra and X3-Hybrid
Art-No.
0157683
Manufacturer No.
106009000601
Product details
Product information "X3-EPS-Parallel-Box 150kW-G2.1"
WR series, performance class and storage capacity must be the same for all connected devices.
With the new X3-EPS-Parallel Box G2.1, the backup connections of up to 5 devices from the X3-Ultra or up to 10 devices from the X3-Hybrid series can be connected together. By synchronizing the EPS outputs and a total output of a maximum of 150 kW, backup power situations with larger consumers and PV systems are also possible.
Product advantages:
• Enables backup power applications on a larger scale
• Separate connection of backup and no-backup consumers
Product features:
• Grid connection_ 400 V, 3-phase
• Max. rated current: 217 A
• Max. inverter output: 150 kW
• Switching time: <10s
• Protection class: IP65
Compatible inverter series: Solax X3-Hybrid and X3-Ultra
Technical details
| Min. temperature ambient (°C) | -25 |
|---|---|
| Protection degree | IP65 |
| Nominal current (A) | 217.00 |
| Intrastat country of origin | China |
|---|---|
| Manufacturer | SolaX Power |
| Intrastat product number (HS-code) | 85363010 |
| Manufacturer item name | X3-PBOX-150kW-G2.1 |
| Amount per Pallet | 4 |
|---|---|
| Weight incl. packaging (Kg) | 50.250 |
| Width incl. packaging (cm) | 79.90 |
| Height incl. packaging (cm) | 31.60 |
| Length incl. packaging (cm) | 87.80 |
| Amount per big Box | 1 |
| Length without packaging (mm) | 234.00 |
|---|---|
| Width without packaging (mm) | 776.00 |
| Weight without packaging (kg) | 42.500 |
| Height without packaging (mm) | 740.00 |
| Product warranty (yr) | 5 |
|---|---|
| Standard product warranty (yr) | 5 |
| Warranty provider | SolaX Power |
