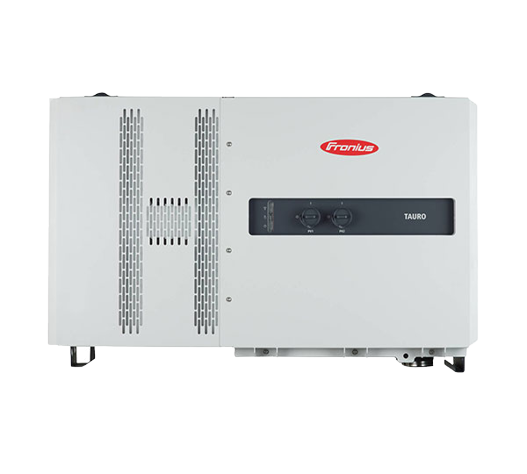

TAURO 50-3-P
String inverter, 3-ph, 3 MPPT, for central systems
Art-No.
0134771
Manufacturer No.
4,210,301
Product details
Product information "TAURO 50-3-P"
***additional a string combiner box is needed***
Includes
- Type 1 + 2 surge protection (AC + DC)
- AC section with multicore connection (for easy installation of multicore cables)
If the device is registered within 30 months, the warranty can be extended by 3 years (total of 5 years, ‘Fronius Warranty Plus’, covering the costs of materials, service and transport).
Fronius inverters come with a standard 2-year warranty.
The warranty period can be extended to up to 10 years free of charge by registering at www.solarweb.com!
Technical details
| Max. AC power (kVA) | 50.00 |
|---|---|
| Topology | transformerless |
| Min. temperature ambient (°C) | -40 |
| MPP min. voltage range input (V) | 400.00 |
| Surge protection AC | type 1 and type 2 |
| Protection degree | IP65 |
| European efficiency (%) | 98.10 |
| Arc Fault Circuit Interrupter | no |
| MPP max. voltage range input (V) | 870.00 |
| Number of independent MPPT (pcs) | 3 |
| Start input voltage (V) | 650 |
| Max. input voltage DC (V) | 1000.00 |
| Interface 1 | RS485 |
| Feed-in phases | 3 |
| Max. efficiency (%) | 98.60 |
| Step-Up converter | yes |
| Max. input current DC (A) total | 134.00 |
| Display | w/o display |
| Degree of protection IP | IP65 |
| Min. voltage range input (V) | 580 |
| Integrated DC switch | yes |
| Total number of string inputs | 3 |
| Interface 2 | Ethernet |
| AC nominal power (kW) | 50.00 |
| Max. generator power DC (kWp) | 75.00 |
| Surge protection DC | type 1 and type 2 |
| Manufacturer item name | Tauro 50-3-P |
|---|---|
| Intrastat product number (HS-code) | 85044084 |
| Manufacturer | Fronius |
| Intrastat country of origin | Austria |
| Weight incl. packaging (Kg) | 111.000 |
|---|---|
| Pal. dim. LxBxH (mm) | 1200x800x1850 |
| Width incl. packaging (cm) | 80.00 |
| Length incl. packaging (cm) | 120.00 |
| Amount per Pallet | 3 |
| Pack. material | cardboard box |
| Pal. weight (kg) | 300.00 |
| Height incl. packaging (cm) | 57.00 |
| Weight without packaging (kg) | 92.000 |
|---|---|
| Width without packaging (mm) | 1109.00 |
| Length without packaging (mm) | 346.00 |
| Height without packaging (mm) | 755.00 |
| Product warranty (yr) | 2 |
|---|---|
| Warranty provider | Fronius |
| Standard product warranty (yr) | 2 years ex works, 5 years with registration via Fronius |
