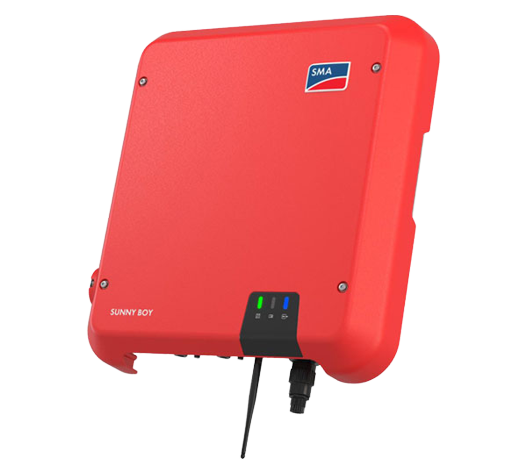

Sunny Boy 4.0-1AV-41
PV inverter, 2 MPPT, 1-phase
Art-No.
0114697
Manufacturer No.
SB4.0-1AV-41
Product details
Product information "Sunny Boy 4.0-1AV-41"
The classic for small systems - the SMA Sunny Boy. In power classes from 1.5 to 6.0 kW, there is always the right one. Ideally combined with the SMA Home Manager for self-consumption recording.
*Regulation according to VDE-AR-N 4105 to max. 4.6 kVA
Product features:
• AC power: 4.0 kW
• AC connection: 230 V, 1-phase
• Number of MPPT: 2
• DC connector: SUNCLIX (included in scope of delivery)
• Communication: WLAN, Ethernet
• Protection class: IP65
• Cooling: passive
• Warranty: 10 years (device registration via the SMA product registration homepage sma-service.com)
• Dimensions: 435 x 470 x 176 mm (W x H x D)
• Weight: 17.5 kg
Technical details
| Topology | transformerless |
|---|---|
| Surge protection DC | no |
| Max. output current (A) | 22.00 |
| Min. temperature ambient (°C) | -25 |
| Protection degree | IP65 |
| Max. input voltage DC (V) | 600.00 |
| Number of independent MPPT (pcs) | 2 |
| AC nominal power (kW) | 4.00 |
| MPP max. voltage range input (V) | 500.00 |
| Decibel | 25 |
| Max. input current per MPPT (A). | 15\/15 |
| Max. efficiency (%) | 97.00 |
| Arc Fault Circuit Interrupter | no |
| Max. input current DC (A) total | 30.00 |
| Max. AC power (kVA) | 4.00 |
| European efficiency (%) | 96.50 |
| Contact ripple control receiver | no |
| Interface 1 | RS485 |
| Total number of string inputs | 4 |
| Rapid shutdown | no |
| Step-Up converter | yes |
| Surge protection AC | no |
| Display | w/o display |
| Min. voltage range input (V) | 100 |
| Start input voltage (V) | 125 |
| Degree of protection IP | IP65 |
| Integrated DC switch | yes |
| MPP min. voltage range input (V) | 140.00 |
| Interface 2 | Ethernet |
| Integrated AC switch | no |
| Max. generator power DC (kWp) | 7.50 |
| Shadow management | yes |
| DC connector type | SUNCLIX |
| Max. short circuit current per MPPT (A) | 22\/22 |
| Max. short circuit current (A) total | 44.00 |
| String fuses | not included |
| Intrastat country of origin | China |
|---|---|
| Intrastat product number (HS-code) | 85044085 |
| Manufacturer | SMA |
| Manufacturer item name | Sunny Boy 4.0 |
| Length incl. packaging (cm) | 59.00 |
|---|---|
| Amount per Pallet | 18 |
| Pal. dim. LxBxH (mm) | 1200x800x1670 |
| Weight incl. packaging (Kg) | 20.500 |
| Pal. weight (kg) | 381.00 |
| Width incl. packaging (cm) | 49.00 |
| Pack. material | cardboard box |
| Height incl. packaging (cm) | 25.00 |
| Weight without packaging (kg) | 16.000 |
|---|---|
| Width without packaging (mm) | 435.00 |
| Length without packaging (mm) | 470.00 |
| Height without packaging (mm) | 176.00 |
| Warranty provider | SMA |
|---|---|
| Product warranty (yr) | 5 |
| Standard product warranty (yr) | 5 |
