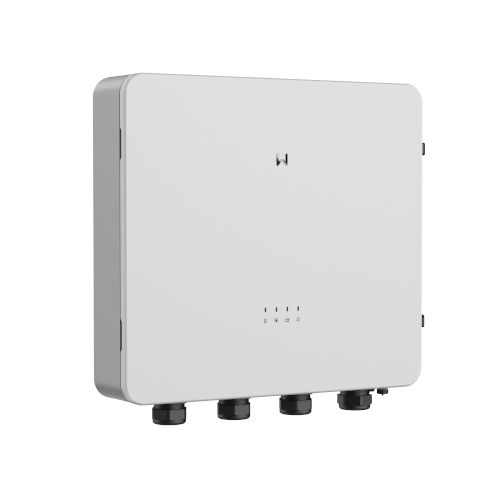

Static Transfer Switch GW125K-STS-G10
Switching device for ET Hybrid inverter 80-100 kW
Art-No.
0163191
Manufacturer No.
GAA125K-01-00P
Product details
Product information "Static Transfer Switch GW125K-STS-G10"
The large version of Goodwe's Static Transfer Switch is designed for ET Hybrid inverters with capacities from 80 to 100 kW. It enables the safe switching between grid and backup power with a switching time of less than 4 ms. This ensures a stable power supply for sensitive loads in commercial applications. Furthermore, the integration of an emergency generator via the STS box's Smart Port input is possible.
Product advantages:
• UPS-level switching <4 ms
• Backup generator integration possible
Product specifications:
• Max. AC inverter output: 125 kW
• Max. AC generator output: 50 kW
• AC mains voltage: 400 V
• Power supply phases: 3
• Network configurations: TN-S, TN-C, TN-C-S, TT
• Communication with inverter: RS485
• Protection class: IP54
• Cooling: active
• Dimensions: 680 x 620 x 165 mm
• Weight: 21.0 kg
Technical details
| Nominal current (A) | 210.00 |
|---|
| Intrastat country of origin | China |
|---|---|
| Manufacturer item name | GW125K-STS-G10 |
| Manufacturer | GoodWe |
| Intrastat product number (HS-code) | 85371098 |
| Length incl. packaging (cm) | 19.50 |
|---|---|
| Pal. dim. LxBxH (mm) | 1067x784x906 |
| Amount per Pallet | 4 |
| Height incl. packaging (cm) | 76.00 |
| Weight incl. packaging (Kg) | 28.700 |
| Width incl. packaging (cm) | 104.50 |
| Pack. material | cardboard box |
| Pal. weight (kg) | 125.30 |
| Height without packaging (mm) | 620.00 |
|---|---|
| Length without packaging (mm) | 165.00 |
| Weight without packaging (kg) | 21.000 |
| Width without packaging (mm) | 680.00 |
| Warranty provider | GoodWe |
|---|---|
| Standard product warranty (yr) |
