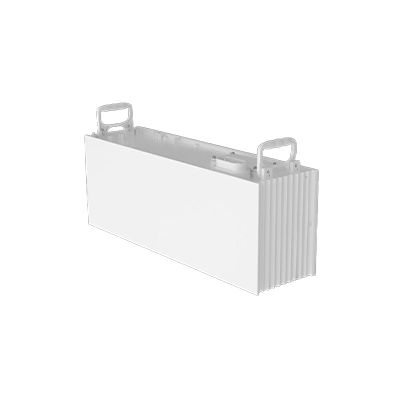

SigenStor Neo BAT 6.0
HV storage module, 6.02 kWh usable, LFP
Art-No.
0165136
Manufacturer No.
11130028
Product details
Product information "SigenStor Neo BAT 6.0"
The Neo storage modules can only be used in combination with the SigenStor Neo Energy Controller.
In addition to the Energy Controller, the Floor/Wall Mounting Kit must be included.
The SigenStor Neo Battery from Sigenergy is the storage component of the SigenStor Neo All-in-One System. It is available in two versions and can be flexibly combined with one another. The two storage sizes, with usable capacities of 6.02 and 7.52 kWh, provide a total of 45.12 kWh in the maximum configuration with 6 batteries. The integrated optimizer ensures ideal charge management during operation and even with unlimited expansion over time.
Product features:
• Usable battery capacity: 6.02 kWh
• Storage type: High-voltage
• Expansion time window: unlimited
• Number of storage modules per unit: 1 to 6
• Cell chemistry: LFP
• Integrated cell heating: yes
• Cooling: passive
• Protection class: IP66
• Dimensions: 800 x 295 x 235 mm
• Weight: 54.9 kg
Caution
| Dangerous goods description | LITHIUM ION BATTERIES |
|---|---|
| Dangerous goods Weight (net) (kg) | 54.900 |
| Dangerous goods class | 9 |
| Dangerous goods transportation category | 2 |
| UN No. | 3480 |
| Dangerous goods packaging type | 4G |
| Classification code | M4 |
| Tunnel restriction code | (E) |
Technical details
| Protection degree | IP66 |
|---|---|
| Capacity extendable later | yes without restriction |
| Min. temperature ambient (°C) | -25 |
| Usable capacity (kWh) | 6.00 |
| Battery cell chemistry | LFP |
| Dangerous goods description | LITHIUM ION BATTERIES |
|---|---|
| Dangerous goods Weight (net) (kg) | 54.900 |
| Dangerous goods class | 9 |
| Dangerous goods transportation category | 2 |
| UN No. | 3480 |
| Dangerous goods packaging type | 4G |
| Manufacturer | Sigenergy |
| Manufacturer item name | SigenStor Neo BAT 6.0 |
| Intrastat product number (HS-code) | 85076000 |
| Classification code | M4 |
| Tunnel restriction code | (E) |
| Length incl. packaging (cm) | 90.00 |
|---|---|
| Width incl. packaging (cm) | 39.10 |
| Height incl. packaging (cm) | 30.70 |
| Weight incl. packaging (Kg) | 61.000 |
| Amount per Pallet | 8 |
| Pack. material | cardboard box |
| Length without packaging (mm) | 800.00 |
|---|---|
| Width without packaging (mm) | 295.00 |
| Height without packaging (mm) | 235.00 |
| Weight without packaging (kg) | 54.900 |
| Warranty provider | Sigenergy |
|---|---|
| Standard product warranty (yr) | 10 |
