SMA Storage XL Package Outdoor
STPS30-20, 107 kWh, Outdoor
Art-No.
0163641
Manufacturer No.
CSS-107-OUT-30-30
Product details
Product information "SMA Storage XL Package Outdoor"
An e-meter is not included and must be ordered separately.

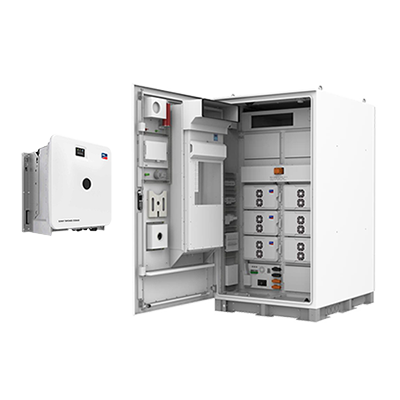

SMA Storage XL Package consisting of:
• Battery inverter STPS30-20 (30 kW)
• Integrated SMA System Manager
• SMA Energy Management powered by ennexOS
• High-voltage battery storage system, including BMS with 107 kWh for outdoor applications (with active climate control)
Wichtige technische Daten
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods description | LITHIUM ION BATTERIES |
| Dangerous goods Weight (net) (kg) | 822.000 |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
Technical details
| Topology | transformerless |
|---|---|
| AC nominal power (kW) | 30.00 |
| Min. temperature ambient (°C) | -25 |
| Backup system full | yes with supply |
| Max. output current (A) | 45.60 |
| Max. nominal charging power (kW) | 18.00 |
| Surge protection AC | type 2 |
| Batterie charge cycles | 12000 |
| Decibel | 69 |
| Commercial system | yes |
| Display | w/o display |
| Battery cell chemistry | LFP |
| Max. discharging power (kW) | 18.00 |
| Max. AC power (kVA) | 30.00 |
| Usable capacity (kWh) | 107.00 |
| Protection degree | IP55 |
| Grid protection | yes |
| Max. C-rate | 1.00 |
| Intrastat country of origin | China |
|---|---|
| Dangerous goods transportation category | 2 |
| Dangerous goods description | LITHIUM ION BATTERIES |
| Dangerous goods Weight (net) (kg) | 822.000 |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Manufacturer | SMA |
| Intrastat product number (HS-code) | 85076000 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
| Manufacturer item name | Storage XL Package STPS30-20*CS-107-OUT-30 |
| Weight incl. packaging (Kg) | 1784.500 |
|---|
| Weight without packaging (kg) | 1619.000 |
|---|
| Warranty provider | SMA |
|---|---|
| Standard product warranty (yr) | 10 |
