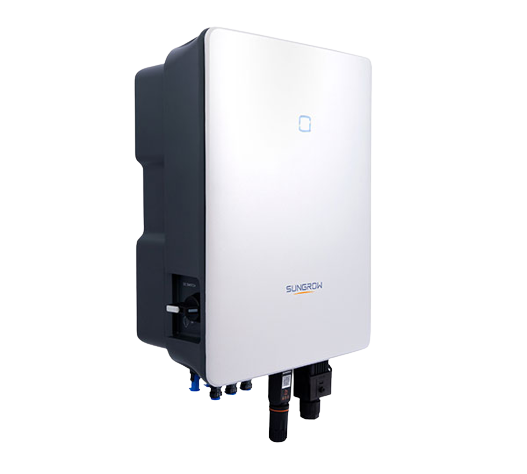

SG8.0RT-V115
string inverter SG8.0RT
Art-No.
0152467
Manufacturer No.
ASG01778
Product details
Product information "SG8.0RT-V115"
The WiNet module is included in delivery.
High Yield:
- Lower startup & wider MPPT voltage
- Compatible with bifacial modules
- Built-in PID recovery function
Safe and Durable:
- Quick arc fault circuit interrupter
- Built-in Type II DC & AC SPD
- High anti-corrosion rating C5
Smart Management:
- Smart IV curve scanning
- 24/7 Live monitoring
- Remote firmware updates
Easy and User Friendly:
- Compact design
- Unique push-in connectors
- Fast and easy commissioning via App
Technical details
| Topology | transformerless |
|---|---|
| DC connector type | MC4 |
| Max. generator power DC (kWp) | 12.00 |
| Max. AC power (kVA) | 8.80 |
| Min. temperature ambient (°C) | -25 |
| Protection degree | IP65 |
| Min. voltage range input (V) | 180 |
| Number of independent MPPT (pcs) | 2 |
| Surge protection AC | type 2 |
| Interface 1 | RS485 |
| Max. efficiency (%) | 98.50 |
| Step-Up converter | yes |
| Max. input current per MPPT (A). | 25,0\/12,5 |
| Decibel | 35 |
| Display | w/o display |
| Max. short circuit current per MPPT (A) | 32,0\/16,0 |
| Degree of protection IP | IP65 |
| Start input voltage (V) | 180 |
| Max. short circuit current (A) total | 48.00 |
| MPP min. voltage range input (V) | 160.00 |
| Integrated DC switch | yes |
| Total number of string inputs | 3 |
| Max. input voltage DC (V) | 1100.00 |
| Surge protection DC | type 2 |
| AC nominal power (kW) | 8.00 |
| Max. input current DC (A) total | 37.50 |
| Interface 2 | Ethernet |
| Arc Fault Circuit Interrupter | yes |
| MPP max. voltage range input (V) | 1000.00 |
| Max. output current (A) | 13.30 |
| European efficiency (%) | 97.80 |
| Intrastat country of origin | China |
|---|---|
| Intrastat product number (HS-code) | 85044086 |
| Manufacturer | Sungrow |
| Manufacturer item name | SG8.0RT |
| Amount Pal. p. Cont. | 52 |
|---|---|
| Pal. dim. LxBxH (mm) | 1100x1100x1100 |
| Height incl. packaging (cm) | 29.50 |
| Pal. weight (kg) | 313.00 |
| Width incl. packaging (cm) | 43.00 |
| Amount per Pallet | 12 |
| Pack. material | cardboard box |
| Length incl. packaging (cm) | 65.00 |
| Amount p. Cont. | 624 |
| Weight incl. packaging (Kg) | 23.500 |
| Weight without packaging (kg) | 18.000 |
|---|---|
| Height without packaging (mm) | 195.00 |
| Width without packaging (mm) | 370.00 |
| Length without packaging (mm) | 480.00 |
| Standard product warranty (yr) | 10 |
|---|---|
| Warranty provider | Sungrow |
| Product warranty (yr) | 10 |
