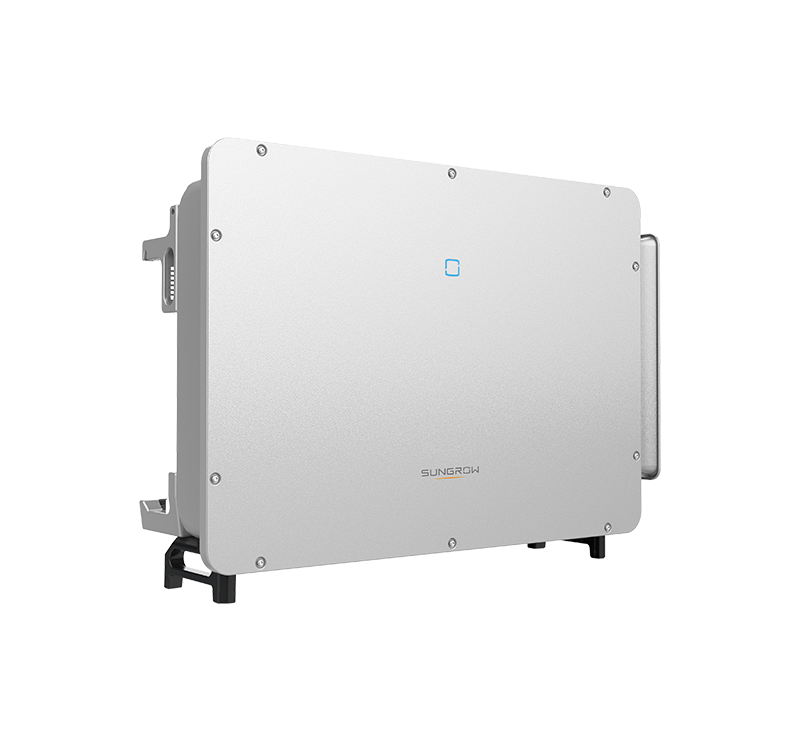

SG350HX-20, 350kW
Product information "SG350HX-20, 350kW"
This inverter requires a mains voltage of 800 V.
AC connection can be made with two wires per phase. The appropriate cable entry is available separately.
The SG350HX-20 is the largest version of a string inverter from Sungrow. Its practical features, high input currents, and extensive functions leave little to be desired. Intelligent IV curve diagnostics, integrated Type 2 AC+DC surge protection, and 24-hour insulation monitoring – all optimized for functionality and safety. Due to the long cable lengths, this model also supports two AC wires per phase.
Product advantages:
• 75 A input current per MPPT (25 A per string connection)
• AC+DC Type 2 surge protection
• Intelligent IV curve diagnostics
• Side-mounted AC connection box for optimal accessibility
• AC connection can be made with 2 wires per phase
Product features:
• AC power: 350.0 kW
• AC connection: 800 V, 3-phase
• DC system voltage: 1500 V
• Number of MPPTs: 6
• Connections per MPPT: 5
• DC connector: MC4 EVO-2
• Surge protection: AC+DC Type 2
• Communication: RS485, PLC
• Protection class: IP66
• Cooling: active
• Dimensions: 779 x 1148 x 371 mm (H x W x D)
• Weight: 106.0 kg
Technical details
| Topology | transformerless |
|---|---|
| Max. short circuit current per MPPT (A) | 125 |
| Max. efficiency (%) | 99.02 |
| European efficiency (%) | 98.80 |
| MPP min. voltage range input (V) | 500.00 |
| DC connector type | MC4 Evo 2 |
| AC nominal power (kW) | 295.00 |
| Total number of string inputs | 30 |
| Protection degree | IP66 |
| Max. output current (A) | 254.00 |
| Arc Fault Circuit Interrupter | no |
| Surge protection AC | type 2 |
| Degree of protection IP | IP66 |
| Interface 1 | RS485 |
| Step-Up converter | yes |
| Max. short circuit current (A) total | 750.00 |
| Display | w/o display |
| Start input voltage (V) | 550 |
| Max. input current per MPPT (A). | 75 |
| Min. voltage range input (V) | 500 |
| Integrated DC switch | yes |
| Min. temperature ambient (°C) | -30 |
| Surge protection DC | type 2 |
| Max. AC power (kVA) | 352.00 |
| Max. input current DC (A) total | 450.00 |
| Integrated AC switch | no |
| MPP max. voltage range input (V) | 1500.00 |
| Number of independent MPPT (pcs) | 6 |
| Max. input voltage DC (V) | 1080.00 |
| Intrastat country of origin | China |
|---|---|
| Manufacturer item name | SG350HX-20 |
| Intrastat product number (HS-code) | 85044086 |
| Manufacturer | Sungrow |
| Amount per Pallet | 4 |
|---|---|
| Length incl. packaging (cm) | 128.80 |
| Weight incl. packaging (Kg) | 152.500 |
| Pack. material | cardboard box |
| Width incl. packaging (cm) | 102.40 |
| Pal. weight (kg) | 610.00 |
| Height incl. packaging (cm) | 56.30 |
| Amount Pal. p. Cont. | 18 |
| Pal. dim. LxBxH (mm) | 1300x1050x2250 |
| Amount p. Cont. | 72 |
| Weight without packaging (kg) | 106.000 |
|---|---|
| Width without packaging (mm) | 779.00 |
| Height without packaging (mm) | 371.00 |
| Length without packaging (mm) | 1148.00 |
| Product warranty (yr) | 5 |
|---|---|
| Standard product warranty (yr) | 5 |
| Warranty provider | Sungrow |
