SE90K
Set
PV-IV, 3-phase, AFCI, w/o Display, MC4
Art-No.
0144303
Manufacturer No.
SE90K-RW00IBNM4
Product details
Product information "SE90K"
Smart Home components such as EV Charger, Hot Water Controller, Smart Switch, etc. cannot be used with inverters > SE17K.
Product advantages:
• Pre-commissioning feature for automated validation of system components and wiring during the site installation process and prior to grid connection

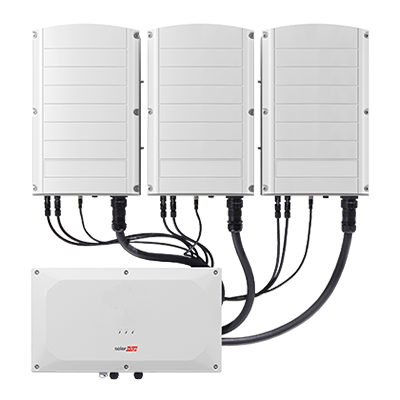

• Easy 2-person installation with lightweight, modular design (each inverter consists of 3 Synergy Units and one Synergy Manager)
• Independent operation of each Synergy Unit enables higher uptime and easy serviceability
• Built-in thermal sensors detect faulty wiring ensuring enhanced protection and safety
• Built-in arc fault protection (AFCI)
• Built-in PID mitigation for maximized system performance
• Monitored (applicable only for DC and AC SPD) and field-replaceable surge protection devices, to better withstand surges caused by lightning or other events: integrated RS485 and Type 2 DC SPDs
• Built-in module-level monitoring with Ethernet or cellular communication for full system visibility
Downloads
-
SE90K-RW00IBNM4 (MC4 / WITHOUT DC-SWITCH)0144298
-
SESUK-RW00INNN4 (WITHOUT RAPID SHUTDOWN)0144300
-
SE90K-RW00IBNM4 (MC4 / WITHOUT DC-SWITCH)0144298
Technical details
| Topology | transformerless |
|---|---|
| DC connector type | MC4 |
| Min. temperature ambient (°C) | -40 |
| Max. input current DC (A) total | 130.50 |
| Step-Up converter | no |
| Protection degree | IP65 |
| AC nominal power (kW) | 90.00 |
| Max. input voltage DC (V) | 1000.00 |
| Total number of string inputs | 12 |
| Interface 1 | RS485 |
| European efficiency (%) | 98.00 |
| Display | w/o display |
| Max. AC power (kVA) | 90.00 |
| Degree of protection IP | IP65 |
| Decibel | 67 |
| Max. generator power DC (kWp) | 157.50 |
| Surge protection DC | type 2 |
| Interface 2 | Ethernet |
| Arc Fault Circuit Interrupter | yes |
| Min. voltage range input (V) | 680 |
| Integrated DC switch | no |
| Max. efficiency (%) | 98.30 |
| Intrastat country of origin | Israel |
|---|---|
| Intrastat product number (HS-code) | 85044086 |
| Manufacturer | SolarEdge |
| Manufacturer item name | SE90K for Europe*SESUK-RW |
| Weight incl. packaging (Kg) | 123.740 |
|---|
| Weight without packaging (kg) | 114.000 |
|---|
| Product warranty (yr) | 12 |
|---|---|
| Warranty provider | SolarEdge |
