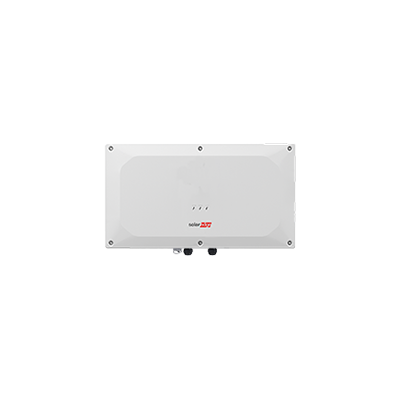

SE50K (MC4 CONNECTORS/WITHOUT DC-SWITCH) B-Grade
Set
Three Phase Inverter without DC switch
Art-No.
0156609
Manufacturer No.
SE50K-RW00IBPM4
Product details
Product information "SE50K (MC4 CONNECTORS/WITHOUT DC-SWITCH) B-Grade"
Warranty valid since approximately April 2023.
Pre-commissioning is not possible.
Applicable in Belgium, Denmark, Finland, France, Ireland, Italy, Poland, Portugal, Slovakia, Slovenia, Spain, Czech Republic, Hungary, and the United Kingdom.
Smart home components such as EV chargers, hot water controllers, smart switches, etc. cannot be used with inverters > SE17K.
Product advantages:
• Easy 2-person installation with lightweight, modular design (each inverter consists of 2 Synergy Units and one Synergy Manager)
• Independent operation of each Synergy Unit enables higher uptime and easy serviceability
• Built-in thermal sensors detect faulty wiring ensuring enhanced protection and safety
• Built-in arc fault protection (AFCI)
• Built-in PID mitigation for maximized system performance
• Monitored (applicable only for DC and AC SPD) and field-replaceable surge protection devices, to better withstand surges caused by lightning or other events: integrated RS485 and Type 2 DC SPDs
• Built-in module-level monitoring with Ethernet or cellular communication for full system visibility
Downloads
-
SE50K-RW00IBPM4 (MC4 / W/O DC-SWITCH) B-Grade0156606
-
SESUK-RW00INNN4 (WITHOUT RAPID SHUTDOWN)0144300
-
SE50K-RW00IBPM4 (MC4 / W/O DC-SWITCH) B-Grade0156606
Technical details
| Max. AC power (kVA) | 50.00 |
|---|---|
| Topology | transformerless |
| DC connector type | MC4 |
| Total number of string inputs | 8 |
| Min. temperature ambient (°C) | -40 |
| Step-Up converter | no |
| Protection degree | IP65 |
| Max. generator power DC (kWp) | 87.50 |
| Max. input voltage DC (V) | 1000.00 |
| Interface 1 | RS485 |
| European efficiency (%) | 98.00 |
| Display | w/o display |
| Degree of protection IP | IP65 |
| Decibel | 67 |
| Surge protection DC | type 2 |
| Interface 2 | Ethernet |
| Arc Fault Circuit Interrupter | yes |
| Min. voltage range input (V) | 680 |
| Max. input current DC (A) total | 72.50 |
| AC nominal power (kW) | 50.00 |
| Integrated DC switch | no |
| Max. efficiency (%) | 98.30 |
| Intrastat country of origin | Israel |
|---|---|
| Manufacturer item name | SE50K |
| Intrastat product number (HS-code) | 85044086 |
| Manufacturer | SolarEdge |
| Weight incl. packaging (Kg) | 90.000 |
|---|
| Weight without packaging (kg) | 82.000 |
|---|
| Product warranty (yr) | 12 |
|---|---|
| Standard product warranty (yr) | 12 |
| Warranty provider | SolarEdge |
