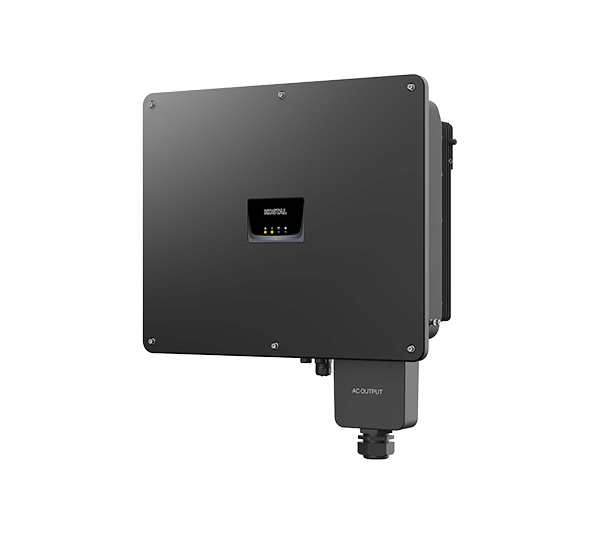

PIKO CI 30
Product information "PIKO CI 30"
Thanks to its extensive features, the 2nd generation of the Kostal Piko CI series enables cost-optimised project implementation. High input currents and protection elements on the DC side as well as efficient 4-wire connection and external control for the central NA protection on the AC side. The integrated data logger ensures reliable recording of all system information and simple connection for direct marketing. Type 2 overvoltage protection is installed for AC + DC.
Product benefits:
- Integrated data logger
- Simple connection for direct marketing
- Cost-optimised 4-wire AC connection
- Smart AC Switch enables direct control for centralised NA protection
Product features:
- AC rated power: 50 kW
- Feed-in phases: 3
- AC mains voltage: 400 V
- Number of MPPT: 4
- Max. DC input voltage: 1100 V
- Max. DC input current per MPPT: 40 / 32 / 32 / 32 A
- DC overvoltage protection: Type 2
- AC overvoltage protection: Type 2
- AFCI arc detection: yes
- DC connector type: Amphenol H4
- Interfaces: 2 x Ethernet, WLAN, RS485, 4 x DI (FRE)
- Protection class: IP66
- Cooling: active
- Dimensions: 530 x 635 x 224 mm (H x W x D)
- Weight: 44.3 kg
Technical details
| Topology | transformerless |
|---|---|
| Max. output current (A) | 84.30 |
| Total number of string inputs | 8 |
| Max. short circuit current (A) total | 185.00 |
| MPP min. voltage range input (V) | 500.00 |
| Max. input current per MPPT (A). | 40\/32\/32\/32 |
| Max. AC power (kVA) | 55.60 |
| Min. temperature ambient (°C) | -25 |
| Protection degree | IP66 |
| Min. voltage range input (V) | 180 |
| Interface 2 | RS485 |
| Start input voltage (V) | 200 |
| MPP max. voltage range input (V) | 850.00 |
| Number of independent MPPT (pcs) | 4 |
| Max. input voltage DC (V) | 1000.00 |
| Surge protection AC | type 2 |
| Degree of protection IP | IP66 |
| Interface 1 | Ethernet |
| Rapid shutdown | no |
| European efficiency (%) | 97.90 |
| Max. short circuit current per MPPT (A) | 50\/45\/45\/45 |
| Step-Up converter | yes |
| Decibel | 35 |
| Display | w/o display |
| Max. input current DC (A) total | 136.00 |
| Max. efficiency (%) | 98.20 |
| Integrated DC switch | yes |
| Surge protection DC | type 2 |
| Control main relay external grid guard | yes |
| Grid protection | yes |
| DC connector type | H4Amphenol |
| Integrated AC switch | yes |
| Arc Fault Circuit Interrupter | yes |
| AC nominal power (kW) | 50.00 |
| Max. generator power DC (kWp) | 75.00 |
| Intrastat country of origin | China |
|---|---|
| Manufacturer item name | PIKO CI 50 G2 |
| Intrastat product number (HS-code) | 85044086 |
| Manufacturer | Kostal |
| Height incl. packaging (cm) | 38.60 |
|---|---|
| Weight incl. packaging (Kg) | 53.500 |
| Amount per Pallet | 3 |
| Pack. material | cardboard box |
| Pal. weight (kg) | 163.60 |
| Pal. dim. LxBxH (mm) | 1200x800x929 |
| Width incl. packaging (cm) | 78.00 |
| Length incl. packaging (cm) | 75.10 |
| Height without packaging (mm) | 224.00 |
|---|---|
| Width without packaging (mm) | 530.00 |
| Weight without packaging (kg) | 44.250 |
| Length without packaging (mm) | 635.00 |
| Standard product warranty (yr) | 2 |
|---|---|
| Product warranty (yr) | 2 |
| Warranty provider | Kostal |
