Oasis 60
HV storage, 60.0 kWh usable, IP55, Outdoor
Art-No.
0161787
Manufacturer No.
1499000008911
Product details
Product information "Oasis 60"
Please check the planning and compatibility with [name]. The installation technician is always responsible for checking and documenting the system.
Commissioning must take place promptly after installation. Any additional measures resulting from longer storage or downtime shall be borne by the responsible party.
Please check for the entire system (existing + new) whether additional third-party loggers or EMS are required for the required interfaces.
The manufacturer's specifications regarding installation location, assembly, installation and assembly tools, fire protection, safety distances, etc. must be checked and confirmed in advance by the customer.
Suitable lifting and transport equipment must be provided on site. The passability of transport routes and passageways must be checked in advance.
As one of the largest cell manufacturers in the world, Sunwoda Energy is already involved in many well-known products. With the Oasis 60 Commercial Storage, it is now stepping into the limelight to get directly involved in the commercial segment. The compact cabinet with integrated air cooling can be set up flexibly. The storage inverter is installed at the side to save space. Up to 6 cabinets with a total usable capacity of 360 kWh can be connected in parallel. The connection is made without an external combiner box via integrated DC rails. Depending on the combined inverter manufacturer, a wide range of application scenarios such as peak shaving and off-grid are possible.
Product advantages:
• Flexible installation thanks to integrated air cooling
• Up to 6 units per inverter can be cascaded in parallel, no combiner box required
Product features:
• Capacity (usable): 60.0 kWh
• Storage type: High-voltage
• Extension time window: unlimited
• Number of storage modules in one unit: 12
• Cascadable units: up to 6 in parallel (via integrated DC rail)
• Cell chemistry: LFP
• Communication: CAN, RS485, Wifi
• Cooling: Air conditioning
• Protection class: IP55
• Cabinet dimensions: 890 x 715 x 2140 mm (L x W x H)
• Weight: Enclosure 207.0 kg, 12 x storage module 50.0 kg each
Wichtige technische Daten
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods description | LITHIUM ION BATTERIES |
| Dangerous goods Weight (net) (kg) | 807.000 |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
Technical details
| Max. output current discharging (A) | 100.00 |
|---|---|
| Max. output current charging (A) | 100.00 |
| Capacity extendable later | yes without restriction |
| Min. temperature ambient (°C) | -20 |
| Battery voltage | High Voltage |
| Battery cell chemistry | LFP |
| Usable capacity (kWh) | 60.00 |
| Protection degree | IP55 |
| Nominal voltage DC (V) | 614.40 |
| Max. C-rate | 1.00 |
| Intrastat country of origin | China |
|---|---|
| Dangerous goods transportation category | 2 |
| Dangerous goods description | LITHIUM ION BATTERIES |
| Dangerous goods Weight (net) (kg) | 807.000 |
| Tunnel restriction code | (E) |
| Manufacturer item name | CIESS 60 |
| Classification code | M4 |
| Intrastat product number (HS-code) | 85076000 |
| Manufacturer | Sunwoda Energy |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
| Amount per Pallet | 1 |
|---|---|
| Width incl. packaging (cm) | 101.30 |
| Pal. weight (kg) | 897.00 |
| Length incl. packaging (cm) | 84.50 |
| Pack. material | wooden box |
| Height incl. packaging (cm) | 215.70 |
| Weight incl. packaging (Kg) | 876.500 |
| Pal. dim. LxBxH (mm) | 1013x835x2157 |
| Weight without packaging (kg) | 807.000 |
|---|---|
| Width without packaging (mm) | 890.00 |
| Length without packaging (mm) | 715.00 |
| Height without packaging (mm) | 2140.00 |
| Warranty provider | Sunwoda Energy |
|---|

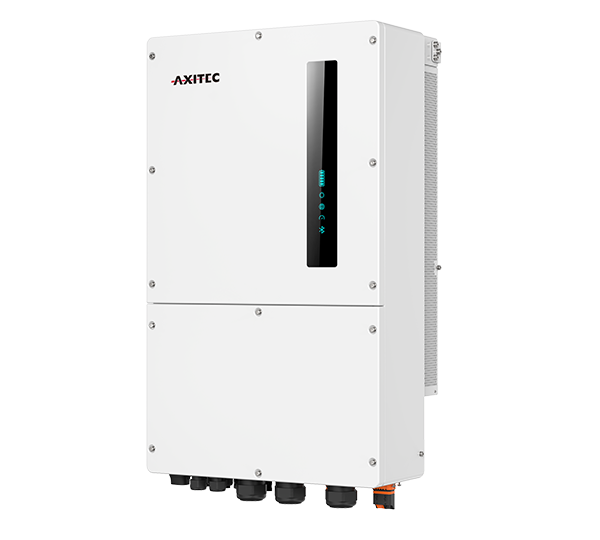

Accessoires
