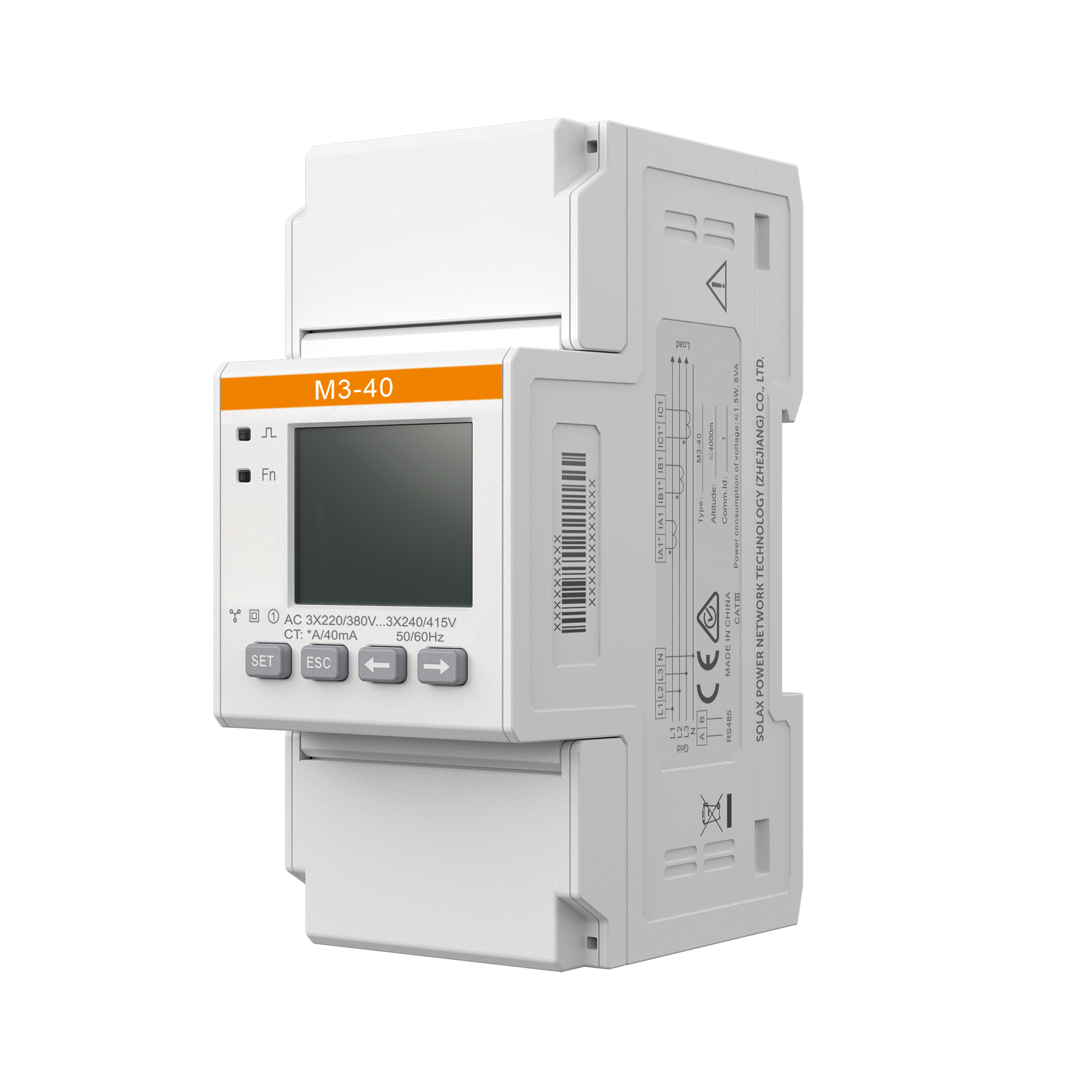

M3-40 (3-phase) Energy Meter

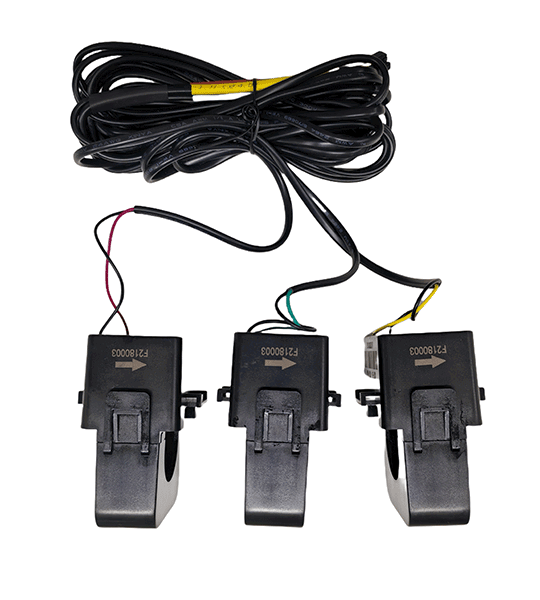

3-phase, indirect measurement, 3 x CT 100A/40mA
Art-No.
0158708
Manufacturer No.
325202002500
Product details
Product information "M3-40 (3-phase) Energy Meter"

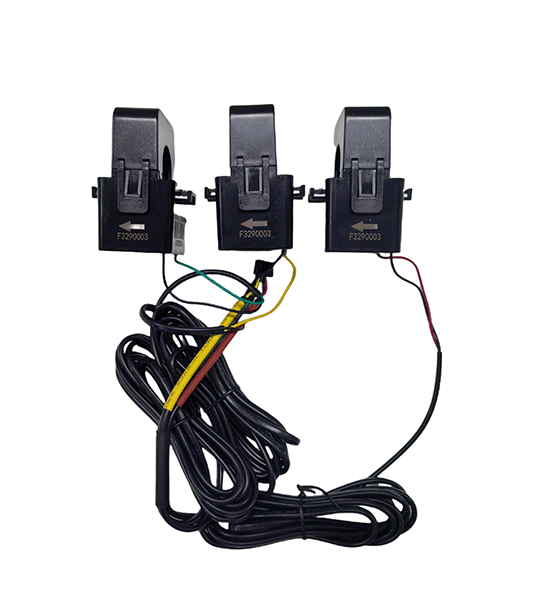

Depending on the application, other sizes of CTs with 40mA secondary current are also available.
This meter operates with total metering. Switching to individual phase metering is not possible.
With the M1 / M3 Energy Meters from Solax, the energy flows at the grid connection point can be recorded quickly and precisely to enable charging management of the storage units and visualization of self-consumption. The update rate of 50ms enables system values to be displayed in almost real time.
Product features:
• Grid connection: 400 V
• Connection phases: 3-phase
• Measurement: indirectly
• Number of CTs: 3
• Communication: RS485
• Update rate: 50 ms
• Installation: top hat rail
Technical details
| Type of AC measurement | indirect |
|---|---|
| Feed-in phases | 3 |
| Max. input current (A) total | 100.00 |
| Mounting type | DIN rail |
| Manufacturer | SolaX Power |
|---|---|
| Manufacturer item name | M3-40 |
| Intrastat country of origin | China |
| Intrastat product number (HS-code) | 90283090 |
| Length incl. packaging (cm) | 6.60 |
|---|---|
| Width incl. packaging (cm) | 4.50 |
| Height incl. packaging (cm) | 10.00 |
| Weight incl. packaging (Kg) | 1.590 |
| Amount per big Box | 24 |
| Amount per small Box | 1 |
| Pack. material | cardboard box |
| Length without packaging (mm) | 66.00 |
|---|---|
| Width without packaging (mm) | 45.00 |
| Height without packaging (mm) | 100.00 |
| Weight without packaging (kg) | 0.680 |
| Warranty provider | SolaX Power |
|---|---|
| Standard product warranty (yr) | 2 |
