Lynx Home U 5.0-30 + GW5000*-ES-20
LV storage system, 5.0 kWh usable, single-phase
Art-No.
0161951
Product details
Product information "Lynx Home U 5.0-30 + GW5000*-ES-20"
Hazardous material according to UN 3480 / Transport hazard class 9 / Packing Group II
This small but powerful complete storage package from Goodwe is ideal for smaller roofs and systems. The hybrid devices in the ES series offer all the functions required for flexible use. Even the latest high-performance modules are no problem for the two MPP trackers, each with 16 amps input current. The LV storage unit, which can be cascaded up to 30 times, ensures a reliable energy supply even in the event of a power failure.
Product advantages:
• Reliable compatibility thanks to a single manufacturer
• Emergency power with UPS function < 10 ms
• 16 A input current per MPPT
• Energy meter + WiFi dongle included with inverter
Product features System:
• AC power: 5.0* kW
• Number of MPPT: 2
• AC connection: 1-phase
• Communication: WiFi, RS485
• Protection class: IP65
• Cooling: passive
• Dimensions: 435 x 506 x 155 mm (H x W x D)
• Weight: approx. 21.0 kg
*Throttled to 4600 VA in accordance with VDE-AR-N 4105 in Germany
Product features Storage:
• Battery capacity (usable): 5.0 kWh
• Time window extension: unlimited
• Cascadable: up to 30 units in parallel (150 kWh)
• Cell chemistry: LFP
• Nominal voltage: 51.2 V
• Protection class: IP65
• Dimensions: 580 x 460 x 160 mm (HxWxD)
• Weight: 50.0 kg
Scope of delivery:
• 1 x GW 5000-ES-20 G2 hybrid inverter, incl. meter (item 0158073)

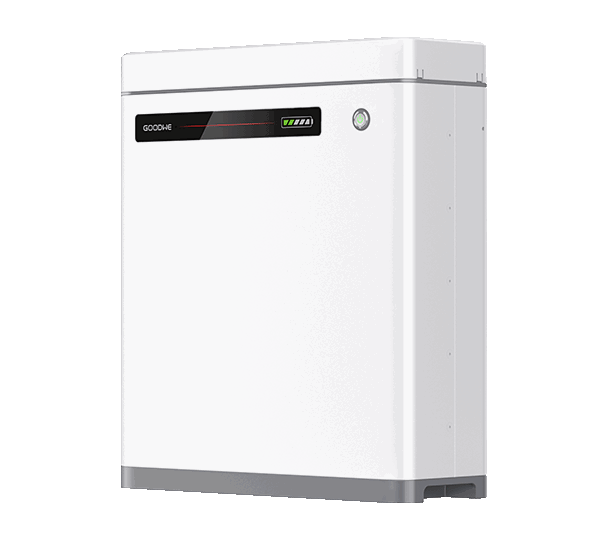

• 1 x Goodwe Lynx Home U 5.0-30 (item 0159472)
Wichtige technische Daten
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| Dangerous goods Weight (net) (kg) | 50.000 |
| UN No. | 3480 |
Downloads
-
GW5000-ES-20 G20158073
-
Lynx U G3 5.0-300159472
-
GW5000-ES-20 G20158073
-
Lynx U G3 5.0-300159472
Technical details
| Topology | transformerless |
|---|---|
| European efficiency (%) | 96.70 |
| Max. input current per MPPT (A). | 16 |
| MPP max. voltage range input (V) | 550.00 |
| Usable capacity (kWh) | 5.00 |
| Protection degree | IP65 |
| Max. input voltage DC (V) | 600.00 |
| Number of independent MPPT (pcs) | 2 |
| Max. short circuit current per MPPT (A) | 23 |
| Arc Fault Circuit Interrupter | no |
| Total number of string inputs | 2 |
| Max. generator power DC (kWp) | 9.00 |
| Max. input current DC (A) total | 32.00 |
| Commercial system | no |
| AC nominal power (kW) | 5.00 |
| Start input voltage (V) | 58 |
| Capacity extendable later | yes without restriction |
| Display | w/o display |
| Battery cell chemistry | LFP |
| MPP min. voltage range input (V) | 60.00 |
| Max. efficiency (%) | 97.60 |
| Integrated DC switch | yes |
| Max. AC power (kVA) | 5.00 |
| Max. short circuit current (A) total | 46.00 |
| Max. output current (A) | 22.70 |
| Intrastat country of origin | China |
|---|---|
| Dangerous goods transportation category | 2 |
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Manufacturer | GoodWe |
| Intrastat product number (HS-code) | 85076000 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| Dangerous goods Weight (net) (kg) | 50.000 |
| UN No. | 3480 |
| Manufacturer item name | LX U5.0-30*GW5000-ES-20 |
| Weight incl. packaging (Kg) | 82.000 |
|---|
| Weight without packaging (kg) | 71.500 |
|---|
| Warranty provider | GoodWe |
|---|
