Lynx C LX C156-10 + 50K-ET

This combination marks the launch of the next power class for commercial applications: the Goodwe Lynx C high-voltage storage system with the new large ET Hybrids with 40 and 50 kW. The corresponding equipment with up to 4 MPP trackers, high input currents, overvoltage protection and AFCI provides the necessary flexibility. The system can be used both grid-connected and off-grid and can also be connected in parallel. Goodwe provides the large ETs with Lynx C commercial storage in various capacity versions. This means that the system can be used to realise various scenarios such as self-consumption, peak shaving, time-of-use and grid support. Combined with the STS box (Static Transfer Switch), the usual reliable switching to UPS level is also provided in backup operation.

Product advantages:

• Hybrids in new, attractive performance classes

• Up to 42 A input current per MPPT

• Overvoltage protection DC type 1+2 / AC type 2 integrated

• Fast switchover to backup power mode < 10 ms with the STS Box

• Storage can be cascaded 3 times

Product features System:

• AC power: 50 kW

• Grid connection: 400V, 3-phase

• Number of MPPT: 4

• DC input current per MPPT: 42+32+42+32 A

• Storage connections: 1

• Communication: Wifi, LAN, 4G, RS485

• Protection class: IP66

• Cooling: active

• Dimensions: 520 x 660 x 260 mm (W x H x D)

• Weight: 65.0 kg

• WIFI-LAN dongle + Smart Meter GM330 included in delivery

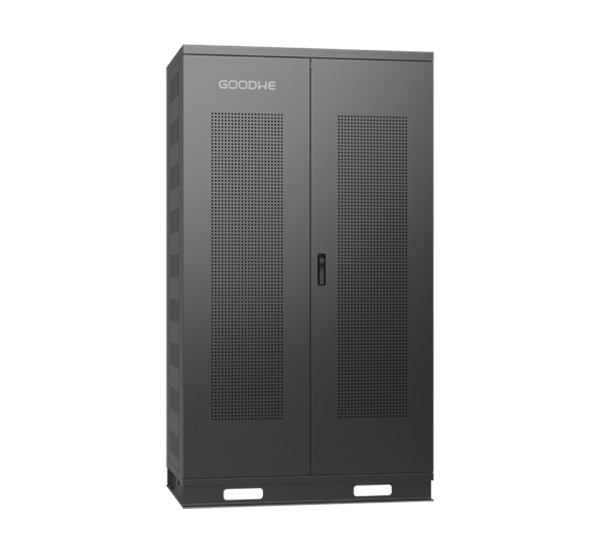

Product features Memory:

• Battery capacity (usable): 156.67 kWh

• Extension window: 1 year

• Cascadable: up to 3 units in parallel

• Charging current: 100 A

• Cell chemistry: LFP

• Nominal voltage: 652.8 V

• Communication: CAN + RS485

• Cooling: active

• Protection class: IP21

• Dimensions: 2065 x 1155 x 730 mm (H x W x D)

• Weight: total 1650.0 kg, storage module 80.0 kg each

Conclusion:

This combination with large hybrids and suitable storage is an ideal module for a wide range of applications. The backup function with the Goodwe STS Box also opens new doors.

Scope of delivery:

• 1 x Goodwe GW 50K-ET Hybrid-WR, incl. dongle (article 0158484)

• 17 x Goodwe Lynx C LX storage module C9.2 (article 0158533)

• 1 x GoodWe Lynx C 156, Cabinet + BCU (article 0158487)
