Lynx C LX C138-10 + 50K-ET-10
Set
HV storage system, 138.24 kWh usable, 3-phase
Art-No.
0161589
Product details
Product information "Lynx C LX C138-10 + 50K-ET-10"
When connecting multiple devices, the EZlink 3000 is required as a control unit.
The Goodwe STS box must be added to enable backup power switching.
The manufacturer's specifications regarding location and installation must be observed, especially regarding storage and installation of the storage modules.
Based on your project-specific key data and planned components, please consider the need for an external EMS to provide, for example, the required control interfaces. This may need to be added separately. We would be happy to assist you in selecting suitable providers.
The GM330 smart meter is included. Suitable measuring transducers still need to be added.
This combination marks the launch of the next performance class for commercial applications: the Goodwe Lynx C high-voltage storage system with the new large ET hybrids with 40 and 50 kW. The corresponding equipment, including up to four MPP trackers, high input currents, surge protection, and AFCI, provides the necessary flexibility. The system can be used both in parallel and off-grid configurations and can also be connected in parallel. Goodwe provides the Lynx C Commercial Storage system in various capacity versions for the large ETs. This allows the system to implement various scenarios such as self-consumption, peak shaving, time-of-use, and grid support. Combined with the STS (Static Transfer Switch) box, the familiar reliable UPS-level switching is also ensured in backup mode.
Product advantages:
• Hybrids in new, attractive performance classes
• Up to 42 A input current per MPPT
• Integrated DC Type 1+2 / AC Type 2 surge protection
• Fast switchover to backup power mode in < 10 ms with the STS Box
• Storage can be cascaded in 3 ways
System product features:
• AC power: 50 kW
• Grid connection: 400 V, 3-phase
• Number of MPPTs: 4
• DC input current per MPPT: 42 + 32 + 42 + 32 A
• Storage connections: 1
• Communication: Wi-Fi, LAN, 4G, RS485
• Protection class: IP66
• Cooling: active
• Dimensions: 520 x 660 x 260 mm (W x H x D)
• Weight: 65.0 kg
• WIFI-LAN dongle + Smart Meter GM330 included in delivery
Storage product features:
• Battery capacity (usable): 138.24 kWh
• Extension time window: unlimited (still being clarified)
• Cascadable: up to 3 units in parallel
• Charging current: 100 A
• Cell chemistry: LFP
• Nominal voltage: 576.0 V
• Communication: CAN + RS485
• Cooling: active
• Protection class: IP21
• Dimensions: 2065 x 1155 x 730 mm (H x W x D)
• Weight: total 1480.0 kg, storage module 80.0 kg each
Conclusion:
This combination of large hybrids and suitable storage is an ideal component for a wide variety of applications. The backup function with the Goodwe STS Box also opens new doors.
Scope of delivery:
• 1 x Goodwe GW50K-ET Hybrid Inverter, including dongle (item 0158484)
• 15 x Goodwe Lynx C LX Battery Module C9.2 (item 0158533)
• 1 x GoodWe Lynx C 138, Cabinet + BCU (item 0161143)
Wichtige technische Daten
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
| Dangerous goods Weight (net) (kg) | 1275.000 |
Downloads
-
GW50K-ET-100158484
-

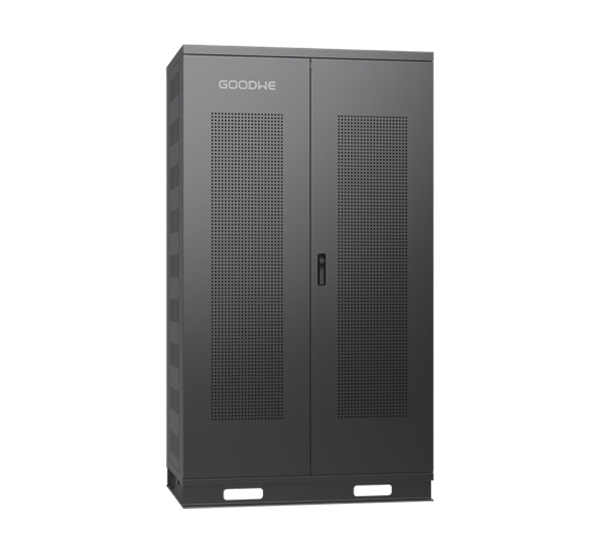

Lynx C Commercial Storage Rack0161143
-
Lynx C commercial storage unit,LX C storage module0158533
-
GW50K-ET-100158484
-
Lynx C Commercial Storage Rack0161143
-
Lynx C commercial storage unit,LX C storage module0158533
Technical details
| Topology | transformerless |
|---|---|
| Total number of string inputs | 8 |
| Max. input current DC (A) total | 148.00 |
| Max. short circuit current per MPPT (A) | 55\/42\/55\/42 |
| Max. AC power (kVA) | 55.00 |
| Start input voltage (V) | 200 |
| MPP max. voltage range input (V) | 850.00 |
| Number of independent MPPT (pcs) | 4 |
| Max. input voltage DC (V) | 1000.00 |
| Surge protection AC | type 2 |
| MPP min. voltage range input (V) | 165.00 |
| Max. output current (A) | 75.80 |
| European efficiency (%) | 97.50 |
| Max. short circuit current (A) total | 194.00 |
| Commercial system | yes |
| Display | w/o display |
| Battery voltage | High Voltage |
| Battery cell chemistry | LFP |
| Max. efficiency (%) | 98.10 |
| Integrated DC switch | yes |
| Surge protection DC | type 2 |
| Integrated AC switch | no |
| Max. input current per MPPT (A). | 42\/32\/42\/32 |
| AC nominal power (kW) | 50.00 |
| Protection degree | IP21 |
| Max. generator power DC (kWp) | 75.00 |
| Usable capacity (kWh) | 138.24 |
| Intrastat country of origin | China |
|---|---|
| Dangerous goods transportation category | 2 |
| Manufacturer item name | Lynx C LX C138-10*50K-ET-10 |
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Manufacturer | GoodWe |
| Intrastat product number (HS-code) | 85076000 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
| Dangerous goods Weight (net) (kg) | 1275.000 |
| Weight incl. packaging (Kg) | 1664.400 |
|---|
| Weight without packaging (kg) | 1590.000 |
|---|
| Warranty provider | GoodWe |
|---|
