Lynx C LX C101-10 + 50K-ET
Set
HV storage system, 101.38 kWh usable, 3-phase
Art-No.
0158488
Product details
Product information "Lynx C LX C101-10 + 50K-ET"
If several devices are interconnected, the EZlink 3000 is required as a control unit.
The Goodwe STS box must be added for switching in backup power mode.
The manufacturer's instructions for installation location and installation must be observed. In particular for storage and installation of the storage modules.
Based on your project-specific key data and planned components, please consider the need for an external EMS to provide, for example, the required control interfaces. This may need to be added separately. We would be happy to assist you in selecting suitable providers.
The GM330 smart meter is included. Suitable measuring transducers still need to be added.
This combination marks the launch of the next power class for commercial applications: the Goodwe Lynx C high-voltage storage system with the new large ET Hybrids with 40 and 50 kW. The corresponding equipment with up to 4 MPP trackers, high input currents, overvoltage protection and AFCI provides the necessary flexibility. The system can be used both grid-connected and off-grid and can also be connected in parallel. Goodwe provides the large ETs with Lynx C commercial storage in various capacity versions. This means that the system can be used to realise various scenarios such as self-consumption, peak shaving, time-of-use and grid support. Combined with the STS box (Static Transfer Switch), the usual reliable switching to UPS level is also provided in backup operation.
Product advantages:
• Hybrids in new, attractive performance classes
• Up to 42 A input current per MPPT
• Overvoltage protection DC type 1+2 / AC type 2 integrated
• Fast switchover to backup power mode < 10 ms with the STS Box
• Storage can be cascaded 3 times
Product features System:
• AC power: 50 kW
• Grid connection: 400V, 3-phase
• Number of MPPT: 4
• DC input current per MPPT: 42+32+42+32 A
• Storage connections: 1
• Communication: Wifi, LAN, 4G, RS485
• Protection class: IP66
• Cooling: active
• Dimensions: 520 x 660 x 260 mm (W x H x D)
• Weight: 65.0 kg
• WIFI-LAN dongle + Smart Meter GM330 included in delivery
Product features Storage:
• Battery capacity (usable): 101.38 kWh
• Extension window: 1 year
• Cascadable: up to 3 units in parallel
• Charging current: 100 A
• Cell chemistry: LFP
• Nominal voltage: 422.4 V
• Communication: CAN + RS485
• Cooling: active
• Protection class: IP21
• Dimensions: 1650 x 1155 x 730 mm (H x W x D)
• Weight: total 1120.0 kg, storage module 80.0 kg each
Conclusion:
This combination with large hybrids and suitable storage is an ideal module for a wide range of applications. The backup function with the Goodwe STS Box also opens new doors.
Scope of delivery:
• 1 x Goodwe GW 50K-ET Hybrid-WR, incl. dongle (article 0158484)
• 11 x Goodwe Lynx C LX storage module C9.2 (article 0158533)
• 1 x GoodWe Lynx C 101, Cabinet + BCU (article 0158486)
Wichtige technische Daten
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Dangerous goods class | 9 |
| Dangerous goods Weight (net) (kg) | 1.250 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
Downloads
-

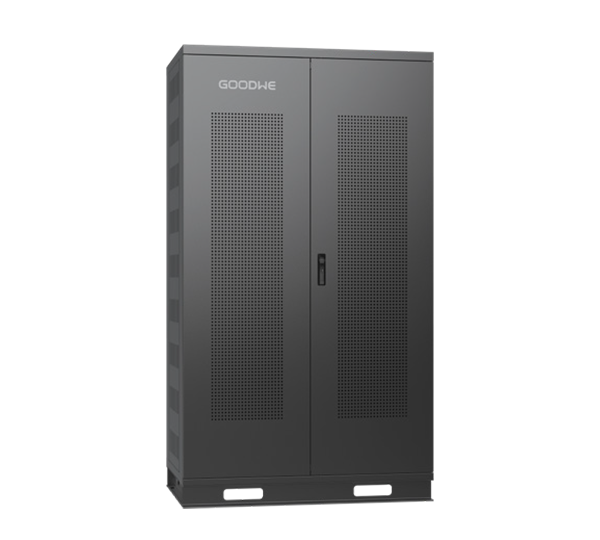

Lynx C Commercial Storage Rack0158486
-
GW50K-ET-100158484
-
Lynx C commercial storage unit,LX C storage module0158533
-
Lynx C Commercial Storage Rack0158486
-
GW50K-ET-100158484
-
Lynx C commercial storage unit,LX C storage module0158533
Technical details
| Topology | transformerless |
|---|---|
| Total number of string inputs | 8 |
| Max. input current DC (A) total | 148.00 |
| Max. short circuit current per MPPT (A) | 55\/42\/55\/42 |
| Max. AC power (kVA) | 55.00 |
| MPP max. voltage range input (V) | 850.00 |
| Number of independent MPPT (pcs) | 4 |
| Max. input voltage DC (V) | 1000.00 |
| Surge protection AC | type 2 |
| MPP min. voltage range input (V) | 165.00 |
| Usable capacity (kWh) | 101.38 |
| Max. output current (A) | 75.80 |
| European efficiency (%) | 97.50 |
| Max. short circuit current (A) total | 194.00 |
| Display | w/o display |
| Battery voltage | High Voltage |
| Battery cell chemistry | LFP |
| Max. efficiency (%) | 98.10 |
| Integrated DC switch | yes |
| Surge protection DC | type 2 |
| Integrated AC switch | no |
| Max. input current per MPPT (A). | 42\/32\/42\/32 |
| AC nominal power (kW) | 50.00 |
| Protection degree | IP21 |
| Max. generator power DC (kWp) | 75.00 |
| Intrastat country of origin | China |
|---|---|
| Dangerous goods transportation category | 2 |
| Dangerous goods description | LITHIUM ION BATTERIES |
| Manufacturer item name | Lynx C LX C101-10*50K-ET-10 |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Manufacturer | GoodWe |
| Intrastat product number (HS-code) | 85076000 |
| Dangerous goods class | 9 |
| Dangerous goods Weight (net) (kg) | 1.250 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
| Weight incl. packaging (Kg) | 1311.400 |
|---|
| Weight without packaging (kg) | 1.250 |
|---|
| Warranty provider | GoodWe |
|---|
