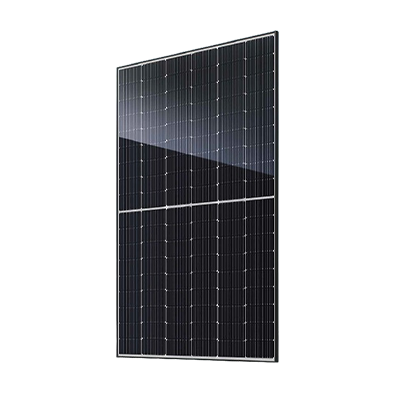

JAM54D40-455/LB
Glass-glass, bifacial, MC4 Evo 2A
Art-No.
0162730
Manufacturer No.
JAM54D40-455/LB HW4
Product details
Product information "JAM54D40-455/LB"
The JAM54D40 LB bifacial solar module from JA Solar delivers a rated power output of 455 Wp and achieves high energy yields even in low-light conditions, with minimal power loss over its entire service life. The robust double-glass construction ensures reliable protection against the elements as well as high mechanical resilience, for example against snow and wind loads. In addition, the module meets hail class HW4, making it particularly resistant to extreme hail events. The overall package is rounded off by a 30-year performance warranty and a 25-year product warranty.
Product advantages:
• Advanced bifacial technology
• Optimised low-light performance
• Robust double-glass construction
• HW4 hail resistance and enhanced surface durability
• 30-year performance warranty and 25-year product warranty
Product features:
• Power rating Pmax: 455 Wp
• Cell type: monocrystalline
• Bifacial: yes
• Cell contact: 16 busbars
• Frame type: framed
• Frame colour: black
• Backsheet colour (cell side): white
• Max. system voltage: 1500 V
• Connector type: MC4 Evo 2A
• Cable length: 1.2 m
• Glass thickness: 2.8 mm (front) / 2.0 mm (back)
• Max. surface load capacity: 8000 Pa (snow) / 5000 Pa (wind)
• Fire protection class: Class C
• Dimensions (without packaging): 1762 x 1134 x 30 mm
• Weight (without packaging): 28.0 kg
• Warranty: 30 years performance warranty and 25 years product warranty
Technical details
| Connector type | MC4 Evo 2A |
|---|---|
| Frame colour | black |
| Length of cable plus (cm) | 120.00 |
| Module efficiency (%) | 22.80 |
| Max. reverse current (A) | 30 |
| Bifacial | yes |
| Max. system voltage (V) | 1500 |
| Backsheet colour cell side | white |
| Temperature coefficient Uoc (%/C) | -0.2500 |
| Number of cells across | 6 |
| Max. surface load capacity testload(Pa) | 8000 |
| Temperature coefficient Pmpp (%/C) | -0.2900 |
| Module structure | glass-glass |
| Cell width (mm) | 189.000 |
| Number of cells along | 18 |
| Frame type | framed |
| Nominal current Impp (A) | 13.79 |
| Cell type | monocrystalline |
| Cable core cross section (mm²) | 4.00 |
| Power tolerance | +3 % |
| Integrated module optimization | no |
| Max. wind speed capacity testload(Pa) | 5000 |
| Protection degree | IP68 |
| Nominal voltage Umpp (V) | 33.00 |
| Power rating Pmax (Wp) | 455 |
| Short circuit current Isc (A) | 14.56 |
| Length of cable minus (cm) | 120.00 |
| Busbars (pcs) | 16 |
| Open circuit voltage Uoc (V) | 39.50 |
| Number of cells (pieces) | 108 |
| Cell cut | half cut |
| Glass thickness front side (mm) | 2.80 |
| Temperature coefficient Isc (%/C) | 0.0450 |
| Cell length (mm) | 93.000 |
| Intrastat country of origin | China |
|---|---|
| Manufacturer item name | JAM54D40-455/LB HW4 |
| Certificate 1 | IEC/TÜV |
| Intrastat product number (HS-code) | 85414300 |
| Manufacturer | JA Solar |
| Certificate 2 | Protection Class 2 |
| Width incl. packaging (cm) | 113.40 |
|---|---|
| Amount p. Cont. | 792 |
| Weight incl. packaging (Kg) | 28.000 |
| Pal. dim. LxBxH (mm) | 1800x1150x1250 |
| Pack. material | cardboard box |
| Height incl. packaging (cm) | 3.00 |
| Length incl. packaging (cm) | 176.20 |
| Amount Pal. p. Cont. | 22 |
| Amount per Pallet | 36 |
| Weight without packaging (kg) | 28.000 |
|---|---|
| Width without packaging (mm) | 1134.00 |
| Length without packaging (mm) | 1762.00 |
| Height without packaging (mm) | 30.00 |
| Performance warranty (yr) | 30 |
|---|---|
| Initial % for linear warranty | 99 |
| Linear degression p.a. in % | 0,4 |
| Product warranty (yr) | 25 |
| Warranty provider | JA Solar |
