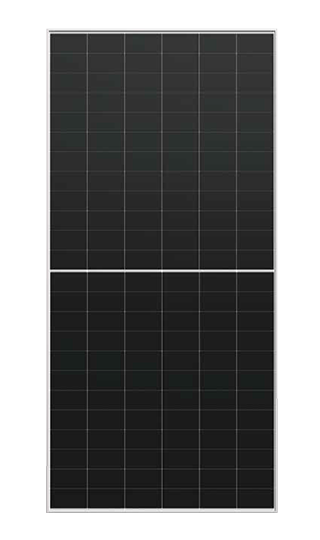

Hi-MO X10 Scientist LR7-72HVD 650M (SU 36)
Glass-glass, bifacial, MC4 Evo 2
Art-No.
0163810
Manufacturer No.
LR7-72HVD-650M
Product details
Product information "Hi-MO X10 Scientist LR7-72HVD 650M (SU 36)"
The Chinese company Longi is one of the world’s leading manufacturers of photovoltaic solutions. With the LR7-72HVD from the Hi-MO X10 Scientist series, Longi offers a highly efficient solar module with an output of up to 650 Wp and a module efficiency of up to 24.6 %. The module is based on HPBC 2.0 cell technology combined with a 0BB structure, resulting in optimised energy yield and improved performance under partial shading. As a bifacial glass-glass module, it enables additional energy yields via the rear side. The robust module design with a dual-glass construction ensures high mechanical resilience and long-term reliable performance. Longi offers a 30-year performance warranty for this module.
Product advantages:
• HPBC 2.0 technology and busbarless 0BB optics
• Bifacial technology for increased energy yield
• Durable and robust glass-glass module
• 30-year performance warranty
Product features:
• Power rating Pmax: 650 Wp
• Cell type: monocrystalline
• Bifacial: yes
• Cell contact: back-contacted
• Frame type: framed
• Frame colour: silver
• Backsheet colour (cell side): white
• Max. system voltage: 1500 V
• Connector type: MC4 Evo 2
• Cable length: 1.4 m
• Glass thickness: 2.0 mm (front) / 2.0 mm (back)
• Max. surface load capacity: 5400 Pa (snow) / 2400 Pa (wind)
• Fire protection class: IEC Class C
• Dimensions (without packaging): 2382 x 1134 x 30 mm
• Weight (without packaging): 33.5 kg
• Warranty: 30 years performance warranty and 15 years product warranty
Caution
| Power rating Pmax (Wp) | 650 |
|---|---|
| Backsheet colour cell side | white |
| Connector type | MC4 Evo 2 |
| Length without packaging (mm) | 2382.00 |
| Width without packaging (mm) | 1134.00 |
| Weight without packaging (kg) | 33.500 |
| Height without packaging (mm) | 30.00 |
Technical details
| Number of cells (pieces) | 144 |
|---|---|
| Bifacial | yes |
| Backsheet colour cell side | white |
| Protection degree | IP68 |
| Glass thickness front side (mm) | 2.00 |
| Integrated module optimization | no |
| Cable core cross section (mm²) | 4.00 |
| Length of cable minus (cm) | 140.00 |
| Length of cable plus (cm) | 140.00 |
| Short circuit current Isc (A) | 15.14 |
| Open circuit voltage Uoc (V) | 54.22 |
| Power tolerance | ~3% |
| Max. surface load capacity testload(Pa) | 5400 |
| Max. reverse current (A) | 30 |
| Max. system voltage (V) | 1500 |
| Max. wind speed capacity testload(Pa) | 2400 |
| Module structure | glass-glass |
| Module efficiency (%) | 24.10 |
| Power rating Pmax (Wp) | 650 |
| Nominal current Impp (A) | 14.49 |
| Frame colour | silver |
| Frame type | framed |
| Connector type | MC4 Evo 2 |
| Temperature coefficient Isc (%/C) | 0.0500 |
| Temperature coefficient Pmpp (%/C) | -0.2600 |
| Temperature coefficient Uoc (%/C) | -0.2000 |
| Cell width (mm) | 182.000 |
| Cell cut | half cut |
| Cell length (mm) | 144.000 |
| Cell type | monocrystalline |
| Manufacturer | Longi |
|---|---|
| Manufacturer item name | LR7-72HVD-650M |
| Intrastat country of origin | China |
| Intrastat product number (HS-code) | 85414300 |
| Length incl. packaging (cm) | 238.20 |
|---|---|
| Width incl. packaging (cm) | 113.40 |
| Height incl. packaging (cm) | 3.00 |
| Weight incl. packaging (Kg) | 33.500 |
| Amount per Pallet | 36 |
| Amount Pal. p. Cont. | 20 |
| Amount p. Cont. | 720 |
| Pal. weight (kg) | 1230.00 |
| Pal. dim. LxBxH (mm) | 2400x1150x1250 |
| Pack. material | cardboard box |
| Length without packaging (mm) | 2382.00 |
|---|---|
| Width without packaging (mm) | 1134.00 |
| Height without packaging (mm) | 30.00 |
| Weight without packaging (kg) | 33.500 |
| Warranty provider | Longi |
|---|---|
| Performance warranty (yr) | 30 |
| Linear degression p.a. in % | 0,35 |
| Standard product warranty (yr) | 15 |
| Initial % for linear warranty | 99 |
