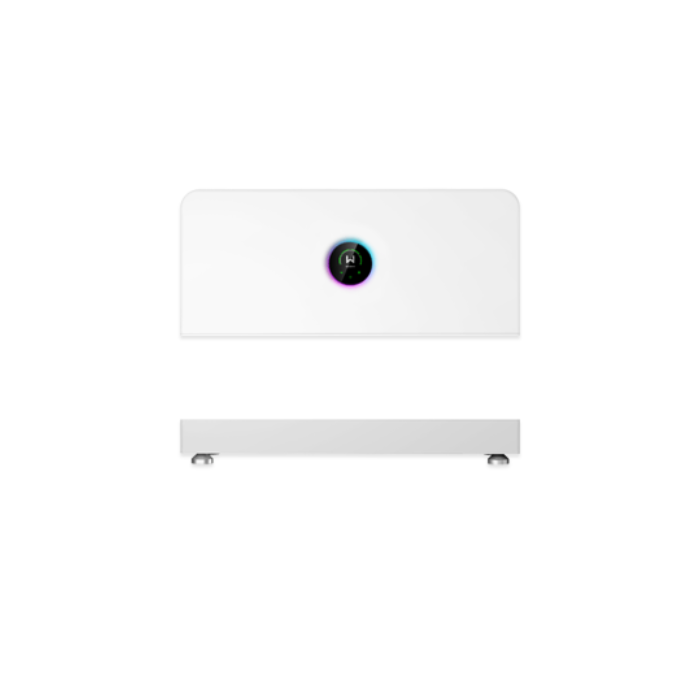

GW8K-ETA-G20
Hybrid inverter, 3-ph, 3 MPPT, incl. base
Art-No.
0163596
Manufacturer No.
NBG8000-07-00P
Product details
Product information "GW8K-ETA-G20"
Up to 6 battery modules can be installed in a single unit with the inverter. If more batteries are used, they must be arranged in a second or third tower.
The ESA Battery Expansion Kit is required for each additional tower.
The base stand is included with both the inverter and the expansion kit.
Three current transformers for direct connection to the inverter are included in the scope of delivery. Alternatively, a separate GoodWe Energy Meter can be used.
The GoodWe ETA-G20 series three-phase hybrid inverters are designed for the compact ESA storage system. All components form a harmonious and visually appealing unit. Up to 12 storage modules (5 to 9 kWh) can be flexibly combined, enabling a total usable capacity of 5 to 108 kWh. The backup port supplies power to even sensitive loads with a switchover time of less than 4 ms. Ideal for residential to small commercial applications. Thanks to the reinforced internal bypass, the entire household connection (up to 80 A*) can be connected to the backup port. With a switchover time of less than 4 ms, sensitive loads continue to operate without interruption.
Product advantages:
• Hybrid inverter for GoodWe ESA compact system
• Connection of entire household supply to backup port possible*
• Flexible combinations up to 108 kWh with GoodWe Bat-D storage
• Up to 42 A input current per MPPT
System product features:
• Rated AC power: 8.0 kW
• Grid feed-in phases: 3
• AC grid voltage: 400 V
• Battery connection: High-voltage
• Number of MPPTs: 3
• Max. DC input voltage: 1000 V
• DC surge protection: Type 2
• AC surge protection: Type 2
• AFCI arc fault detection: Yes
• Communication: Wi-Fi, LAN, RS485, Bluetooth, 4G (optional)
• Protection class: IP66
• Cooling: Active
• Dimensions: 800 x 340 x 270 mm
• Weight: 34.0 kg
• System base stand + 3 x CTs included in scope of delivery
*Device classes 5 to 20 kW with 63-ampere bypass; classes 25 and 30 kW with 80-ampere bypass.
Technical details
| Topology | transformerless |
|---|---|
| MPP min. voltage range input (V) | 120.00 |
| Max. short circuit current per MPPT (A) | 26/26/26 |
| Min. voltage range input (V) | 120 |
| Interface 2 | W-Lan |
| Backup system full | yes with supply |
| Protection degree | IP66 |
| Start input voltage (V) | 150 |
| Number of independent MPPT (pcs) | 3 |
| Min. temperature ambient (°C) | -35 |
| Max. input voltage DC (V) | 1000.00 |
| European efficiency (%) | 97.10 |
| Surge protection AC | type 2 |
| Max. input current per MPPT (A). | 21/21/21 |
| Interface 1 | RS485 |
| Feed-in phases | 3 |
| Battery Connection | AC/DC |
| MPP max. voltage range input (V) | 950.00 |
| Rapid shutdown | yes |
| Display | w/o display |
| Charging voltage (V) | 700 - 950 |
| Max. generator power DC (kWp) | 16.00 |
| Max. efficiency (%) | 98.00 |
| Charging current (A) | 10.70 |
| Max. short circuit current (A) total | 78.00 |
| Integrated DC switch | yes |
| Offgrid usable | yes |
| Backup system light | yes with supply |
| Total number of string inputs | 3 |
| Surge protection DC | type 2 |
| AC nominal power (kW) | 8.00 |
| Grid protection | yes |
| Integrated AC switch | no |
| Arc Fault Circuit Interrupter | yes |
| Max. input current DC (A) total | 63.00 |
| Max. output current (A) | 11.60 |
| String fuses | not included |
| Max. AC power (kVA) | 8.00 |
| Intrastat country of origin | China |
|---|---|
| Manufacturer | GoodWe |
| Intrastat product number (HS-code) | 85044084 |
| Manufacturer item name | GW8K-ETA-G20 |
| Width incl. packaging (cm) | 99.00 |
|---|---|
| Amount per Pallet | 4 |
| Height incl. packaging (cm) | 60.00 |
| Pal. dim. LxBxH (mm) | 1220x1000x1260 |
| Weight incl. packaging (Kg) | 40.000 |
| Length incl. packaging (cm) | 45.00 |
| Weight without packaging (kg) | 34.000 |
|---|---|
| Width without packaging (mm) | 800.00 |
| Height without packaging (mm) | 340.00 |
| Length without packaging (mm) | 270.00 |
| Warranty provider | GoodWe |
|---|---|
| Standard product warranty (yr) | 10 |
