ESS-Aelio P60B100
HV storage system, 60.0 kW WR, 90.0 kWh usable
Art-No.
0158499
Product details
Product information "ESS-Aelio P60B100"
The manufacturer's specifications for installation, assembly and location must be observed.
Due to the high charging capacity, the storage connection must be made with 25 mm² CU cables.
The M3-40 Smart Meter including the appropriate measuring transformers must be added additionally.
For the ESS-Aelio, there is no E6 + E7 approval sheet (control of external NA protection) within the scope of VDE-AR-N 4105. Therefore, the NA protection, including the disconnection point, must be implemented entirely on site.
If several units are connected in parallel, an additional EMS1000 Pro-16 must be added.
Based on your project-specific key data and planned components, please consider the need for an external EMS to provide, for example, the required control interfaces. This may need to be added separately. We would be happy to assist you in selecting suitable providers.
For commercial systems in the small commercial segment, Solax offers a new and highly attractive solution with the ESS-Aelio. The powerful 50/60 kW hybrid inverters are combined with a 100/200 kWh high-voltage storage system. This makes them the ideal system component for systems of this size. In addition to emergency power via the familiar EPS connection, many other application scenarios are possible, even off-grid.
Product advantages:
• Ideal for small commercial applications
• Emergency power with UPS function < 10ms
• High input current per MPPT
• 4-stage fire protection concept
• Integrated arc detection AFCI
Product properties of hybrid inverter:
• AC power: 60.0 kW
• AC connection: 400 V, 3-phase
• Number of MPPTs: 6
• DC input current: 40 A per MPPT
• Max. number of systems in parallel: 3
• Max. storage charging current: 160 (80 x 2) A
• Number of storage units: 2
• Specified storage cable cross-section: 25 mm² CU
• Overvoltage protection: AC + DC type 2
• AFCI arc detection: yes
• Communication: 8 x RS485, 3 x CAN, 4G (including antenna), 4 x Ethernet (via integrated EMS1000 logger)
• Interfaces: 18 x DI, 8 x DO
• Protection class: IP66
• Cooling: active air cooling
• Dimensions: 696 x 526 x 240 mm (W x H x D)
• Weight: 105.0 kg
Product properties of storage rack:
• Battery capacity (usable): 90.0 kWh
• Time window for expansion: unlimited (only entire systems, not in the rack)
• Cell chemistry: LFP
• Nominal voltage: 358.4 V
• Protection class: Rack IP55
• Cooling: active air cooling
• Dimensions: 2300 x 1310 x 1140 mm (HxWxD)
• Weight: WR 100 kg, battery module 115 kg each, cabinet (without WR) 1500 kg
Conclusion:
Due to its performance and capacity, the ideal system component for small commercial applications.
Scope of delivery:

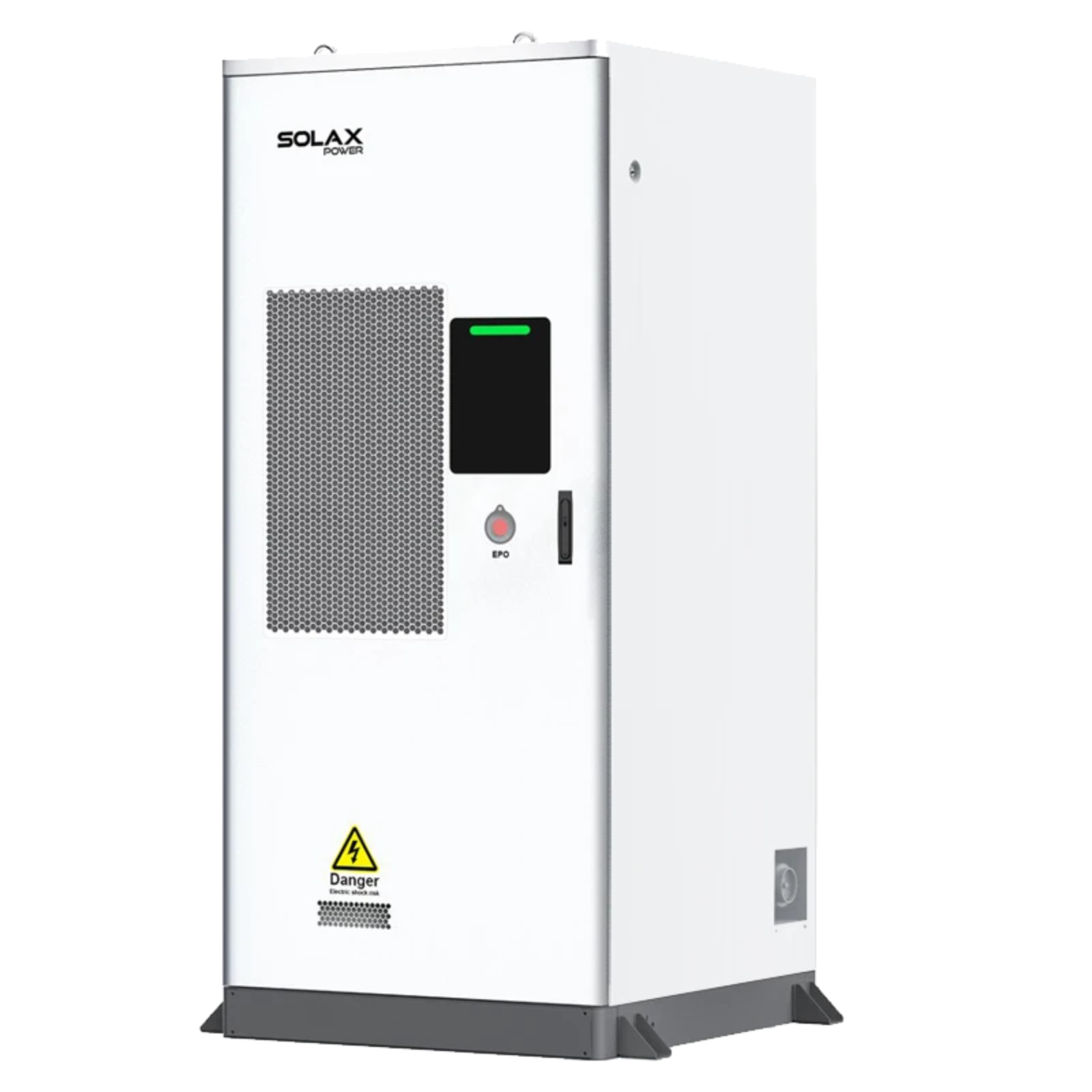

1 x AELIO-B100 (item 0158361)
1 x Hybrid WR X3-AELIO-60K (item 0158360)
Caution
| Dangerous goods description | LITHIUM ION BATTERIES CONTAINED IN EQUIPMENT |
|---|---|
| Dangerous goods Weight (net) (kg) | 805.000 |
| Dangerous goods class | 9 |
| Dangerous goods transportation category | 2 |
| UN No. | 3481 |
| Dangerous goods packaging type | 4G |
| Classification code | M4 |
| Tunnel restriction code | (E) |
Downloads
-
AELIO-B1000158361
-
X3-Aelio-60K0158360
-
AELIO-B1000158361
Technical details
| AC nominal power (kW) | 60.00 |
|---|---|
| Surge protection AC | type 2 |
| Contact ripple control receiver | yes |
| Number of independent MPPT (pcs) | 6 |
| Surge protection DC | type 2 |
| Display | with display |
| Feed-in phases | 3 |
| Backup system light | yes |
| Backup system full | yes |
| European efficiency (%) | 97.20 |
| Protection degree | IP55 |
| Total number of string inputs | 12 |
| Commercial system | yes |
| Integrated DC switch | yes |
| Capacity extendable later | yes without restriction |
| UI curve diagnosis | yes |
| Max. AC power (kVA) | 66.00 |
| Max. output current (A) | 100.00 |
| Max. generator power DC (kWp) | 120.00 |
| Max. input voltage DC (V) | 1000.00 |
| Max. input current DC (A) total | 240.00 |
| Max. input current per MPPT (A). | 40 |
| Max. discharging power (kW) | 57.30 |
| Max. short circuit current (A) total | 300.00 |
| Max. short circuit current per MPPT (A) | 50 |
| MPP max. voltage range input (V) | 950.00 |
| Max. nominal charging power (kW) | 57.30 |
| Max. efficiency (%) | 98.00 |
| MPP min. voltage range input (V) | 160.00 |
| Min. temperature ambient (°C) | -20 |
| Offgrid usable | yes |
| Usable capacity (kWh) | 90.00 |
| Shadow management | yes |
| Start input voltage (V) | 200 |
| Topology | transformerless |
| Battery cell chemistry | LFP |
| Dangerous goods description | LITHIUM ION BATTERIES CONTAINED IN EQUIPMENT |
|---|---|
| Dangerous goods Weight (net) (kg) | 805.000 |
| Dangerous goods class | 9 |
| Dangerous goods transportation category | 2 |
| UN No. | 3481 |
| Dangerous goods packaging type | 4G |
| Manufacturer | SolaX Power |
| Manufacturer item name | AELIO-P60B100 |
| Intrastat country of origin | China |
| Intrastat product number (HS-code) | 85076000 |
| Classification code | M4 |
| Tunnel restriction code | (E) |
| Weight incl. packaging (Kg) | 1600.000 |
|---|
| Length without packaging (mm) | 1140.00 |
|---|---|
| Width without packaging (mm) | 1310.00 |
| Height without packaging (mm) | 2300.00 |
| Weight without packaging (kg) | 1600.000 |
| Warranty provider | SolaX Power |
|---|
