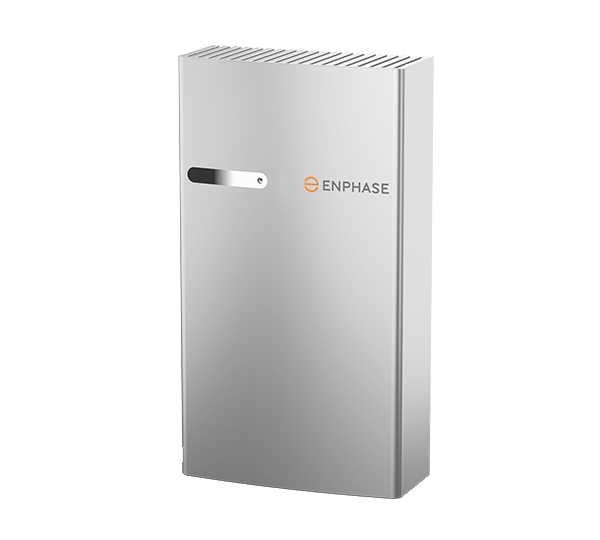

ENCHARGE 3T (3,5 kWh)
Enphase AC energy storage system
Art-No.
0150342
Manufacturer No.
ENCHARGE-3T-1P-INT
Product details
Product information "ENCHARGE 3T (3,5 kWh)"
Use the Enphase System Builder to plan the required components
Currently only certified for Europe, excluding the United Kingdom.
Before the first installation, every installer of an Encharge storage system have to complete an online training course. Further information can be found here:
Encharge 3T battery storage system with integrated Enphase IQ Series microinverters and battery management unit (BMU).
Set includes:
- 1x 0150341 (Encharge 3T base unit)
- 1x 0150339 (Encharge 3T cover kit with accessories)
Downloads
- Mounting Instructions German
- Warranty Terms German
- Datasheet German
- Further Information German
- Operationsmanual German
-
ENCHARGE BATTERY MODULE B03-T01-INT00-1-20150341
Technical details
| AC nominal power (kW) | 1.28 |
|---|---|
| Battery Connection | AC |
| Feed-in phases | 1 |
| Protection degree | IP55 |
| Min. temperature ambient (°C) | -15 |
| Usable capacity (kWh) | 3.50 |
| Battery cell chemistry | LFP |
| Dangerous goods description | LITHIUM ION BATTERIES |
|---|---|
| Dangerous goods Weight (net) (kg) | 48.800 |
| Dangerous goods class | 9 |
| Dangerous goods transportation category | 2 |
| UN No. | 3480 |
| Dangerous goods packaging type | 4G |
| Manufacturer | Enphase |
| Manufacturer item name | ENCHARGE-3T-1P-UK |
| Intrastat country of origin | China |
| Intrastat product number (HS-code) | 85076000 |
| Classification code | M4 |
| Tunnel restriction code | (E) |
| Weight incl. packaging (Kg) | 55.000 |
|---|
| Weight without packaging (kg) | 48.800 |
|---|
| Warranty provider | Enphase |
|---|
