ECO 27.0-3-S

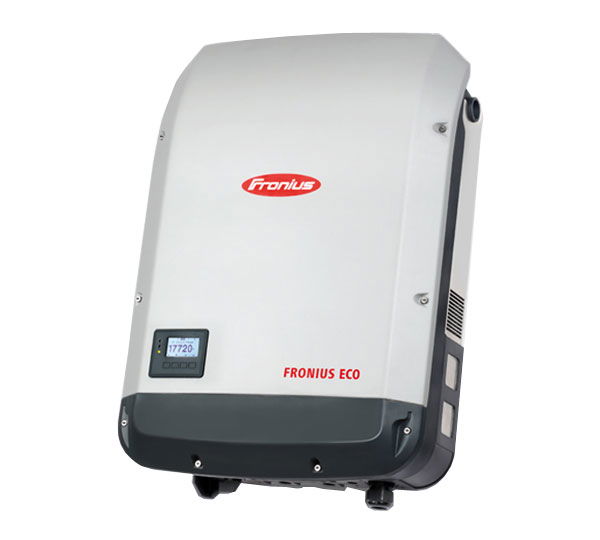

string inverter Fronius ECO 27.0-3-S
Art-No.
0123414
Manufacturer No.
4,210,057,040
Product details
Product information "ECO 27.0-3-S"
with WLAN, LAN and web server
When the unit is registered within 30 months of the warranty can be extended by 3 years (total 5 years, "Fronius warranty plus", transfer of the cost of material performance, service and transport).
Fronius inverters are supplied with a standard warranty of 2 years.
The warranty period can be extended to up to 10 years free of charge by registering at www.solarweb.com!
You can also take part in the Fronius rewards programme and exchange the points you collect for attractive rewards.
Technical details
| Topology | transformerless |
|---|---|
| Total number of string inputs | 6 |
| Step-Up converter | no |
| Min. temperature ambient (°C) | -25 |
| Protection degree | IP66 |
| Display | with display |
| MPP max. voltage range input (V) | 850.00 |
| Max. input current DC (A) total | 47.70 |
| Arc Fault Circuit Interrupter | no |
| Max. AC power (kVA) | 27.00 |
| MPP min. voltage range input (V) | 580.00 |
| Start input voltage (V) | 650 |
| Max. input voltage DC (V) | 1000.00 |
| Degree of protection IP | IP66 |
| Interface 1 | RS485 |
| European efficiency (%) | 98.00 |
| AC nominal power (kW) | 27.00 |
| Number of independent MPPT (pcs) | 1 |
| DC connector type | screw-type terminal |
| Max. generator power DC (kWp) | 35.70 |
| Min. voltage range input (V) | 580 |
| Integrated DC switch | yes |
| Max. efficiency (%) | 98.30 |
| Manufacturer item name | ECO 27.0-3-S |
|---|---|
| Intrastat product number (HS-code) | 85044086 |
| Manufacturer | Fronius |
| Intrastat country of origin | Austria |
| Pal. dim. LxBxH (mm) | 1200x800x1520 |
|---|---|
| Width incl. packaging (cm) | 59.00 |
| Height incl. packaging (cm) | 34.00 |
| Pack. material | cardboard box |
| Weight incl. packaging (Kg) | 39.500 |
| Amount per Pallet | 8 |
| Length incl. packaging (cm) | 79.00 |
| Length without packaging (mm) | 725.00 |
|---|---|
| Width without packaging (mm) | 510.00 |
| Weight without packaging (kg) | 35.700 |
| Height without packaging (mm) | 225.00 |
