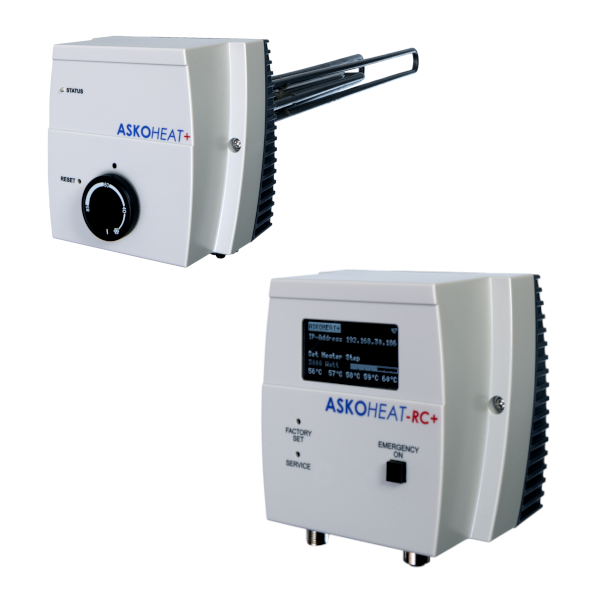

Controller + heating rod AHIR-TI-Plus-4.4
Heating system for PV surplus, 1.5", 3-phase
Art-No.
0159048
Manufacturer No.
012-6803
Product details
Product information "Controller + heating rod AHIR-TI-Plus-4.4"
System compatibility must be checked in accordance with the Askoma approval list.
The AHIR-TI-Plus series from Askoma is a universally applicable system for PV surplus. It consists of a 3-phase connected controller and heating element with 1.75 to 5.2 kW power. The system can be connected either directly to systems from well-known manufacturers via Modbus or directly to an energy meter. The heating output is regulated in 7 uniform stages.
Product features Storage tank:
• Heating output: 4.4 kW
• Mains voltage: 400 V
• Mains connection phases: 3
• Interfaces: RS485, Modbus RTU (via RS485) / TCP (via LAN), analogue signal 0-10 V
• Control: in 7 power stages
• Connection thread: 1.5"
Technical details
| Display | with display |
|---|---|
| AC nominal power (kW) | 4.40 |
| Protection degree | IP41 |
| Intrastat country of origin | Switzerland |
|---|---|
| Manufacturer | ASKOMA |
| Manufacturer item name | AHIR-TI-plus-4.4 |
| Intrastat product number (HS-code) | 85161000 |
| Width incl. packaging (cm) | 18.00 |
|---|---|
| Weight incl. packaging (Kg) | 3.550 |
| Pack. material | cardboard box |
| Length incl. packaging (cm) | 95.00 |
| Height incl. packaging (cm) | 18.00 |
| Width without packaging (mm) | 135.00 |
|---|---|
| Weight without packaging (kg) | 3.000 |
| Length without packaging (mm) | 817.00 |
| Height without packaging (mm) | 145.00 |
| Standard product warranty (yr) | 2 |
|---|---|
| Warranty provider | ASKOMA |
