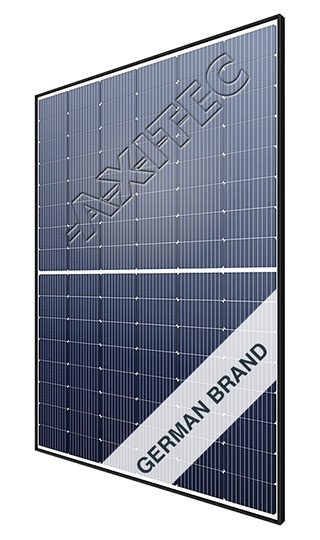

AXIworldbiperfect GQ WB AC-460TGB/96WB
Glass-glass, bifacial, MC4 Evo 2A
Art-No.
0164159
Manufacturer No.
AY10975
Product details
Product information "AXIworldbiperfect GQ WB AC-460TGB/96WB"
The AC-460TGB/96WB PV module from Axitec's AXIworldbiperfect series generates up to 460 Wp of power and offers up to 30% more output thanks to its bifacial technology. This technology ensures sustainable energy production and maximum energy efficiency, as both the front and back surfaces of the PV module are used for power generation. The solar module features enhanced safety thanks to improved fire protection and boasts an elegant and stylish design. An impressive 30-year warranty underscores the exceptional quality and reliability of this product.
Product Benefits:
• Up to 30% more power thanks to bifacial technology
• Increased safety through improved fire protection
• Elegant appearance in a stylish all-black design
• 30-year performance and product warranty
Product Specifications:
• Nominal power Pmax: 460 Wp
• Cell type: monocrystalline
• Bifacial: Yes
• Frame type: framed
• Frame color: black
• Backsheet color (cell side): white
• Max. system voltage: 1500 V
• Connector: MC4 Evo 2A
• Cable length: 1.2 m
• Glass thickness: 2.0 mm (front) / 2.0 mm (back)
• Surface load capacity: 5400 Pa (snow) / 2400 Pa (wind)
• Fire rating: C (UL 790)
• Dimensions: 1762 x 1134 x 30 mm
• Weight: 24.5 kg
• Warranty: 30-year performance warranty and 30-year product warranty
Technical details
| Connector type | MC4 Evo 2A |
|---|---|
| Frame colour | black |
| Length of cable plus (cm) | 120.00 |
| Max. reverse current (A) | 30 |
| Module efficiency (%) | 23.02 |
| Bifacial | yes |
| Max. system voltage (V) | 1500 |
| Backsheet colour cell side | white |
| Max. wind speed capacity testload(Pa) | 2400 |
| Number of cells across | 6 |
| Nominal current Impp (A) | 15.03 |
| Number of cells along | 16 |
| Temperature coefficient Uoc (%/C) | -0.2600 |
| Module structure | glass-glass |
| Cell length (mm) | 210.000 |
| Max. surface load capacity testload(Pa) | 5400 |
| Power tolerance | +5 Wp |
| Temperature coefficient Pmpp (%/C) | -0.3100 |
| Frame type | framed |
| Cell width (mm) | 182.000 |
| Cell type | monocrystalline |
| Cable core cross section (mm²) | 4.00 |
| Integrated module optimization | no |
| Protection degree | IP68 |
| Length of cable minus (cm) | 120.00 |
| Power rating Pmax (Wp) | 460 |
| Short circuit current Isc (A) | 15.88 |
| Busbars (pcs) | 16 |
| Temperature coefficient Isc (%/C) | 0.0460 |
| Cell cut | half cut |
| Nominal voltage Umpp (V) | 30.61 |
| Glass thickness front side (mm) | 2.00 |
| Open circuit voltage Uoc (V) | 36.74 |
| Number of cells (pieces) | 96 |
| Intrastat country of origin | China |
|---|---|
| Manufacturer | AXITEC |
| Certificate 1 | IEC/TÜV |
| Intrastat product number (HS-code) | 85414300 |
| Manufacturer item name | AC-460TGB/96WB |
| Certificate 2 | Protection Class 2 |
| Width incl. packaging (cm) | 113.40 |
|---|---|
| Amount Pal. p. Cont. | 26 |
| Pal. weight (kg) | 927.00 |
| Pack. material | cardboard box |
| Weight incl. packaging (Kg) | 24.500 |
| Height incl. packaging (cm) | 3.00 |
| Length incl. packaging (cm) | 176.20 |
| Amount p. Cont. | 936 |
| Pal. dim. LxBxH (mm) | 1794x1125x1255 |
| Amount per Pallet | 36 |
| Weight without packaging (kg) | 24.500 |
|---|---|
| Width without packaging (mm) | 1134.00 |
| Length without packaging (mm) | 1762.00 |
| Height without packaging (mm) | 30.00 |
| Performance warranty (yr) | 30 |
|---|---|
| Initial % for linear warranty | 99 |
| Standard product warranty (yr) | 30 |
| Linear degression p.a. in % | 0,4 |
| Product warranty (yr) | 30 |
| Warranty provider | AXITEC |
