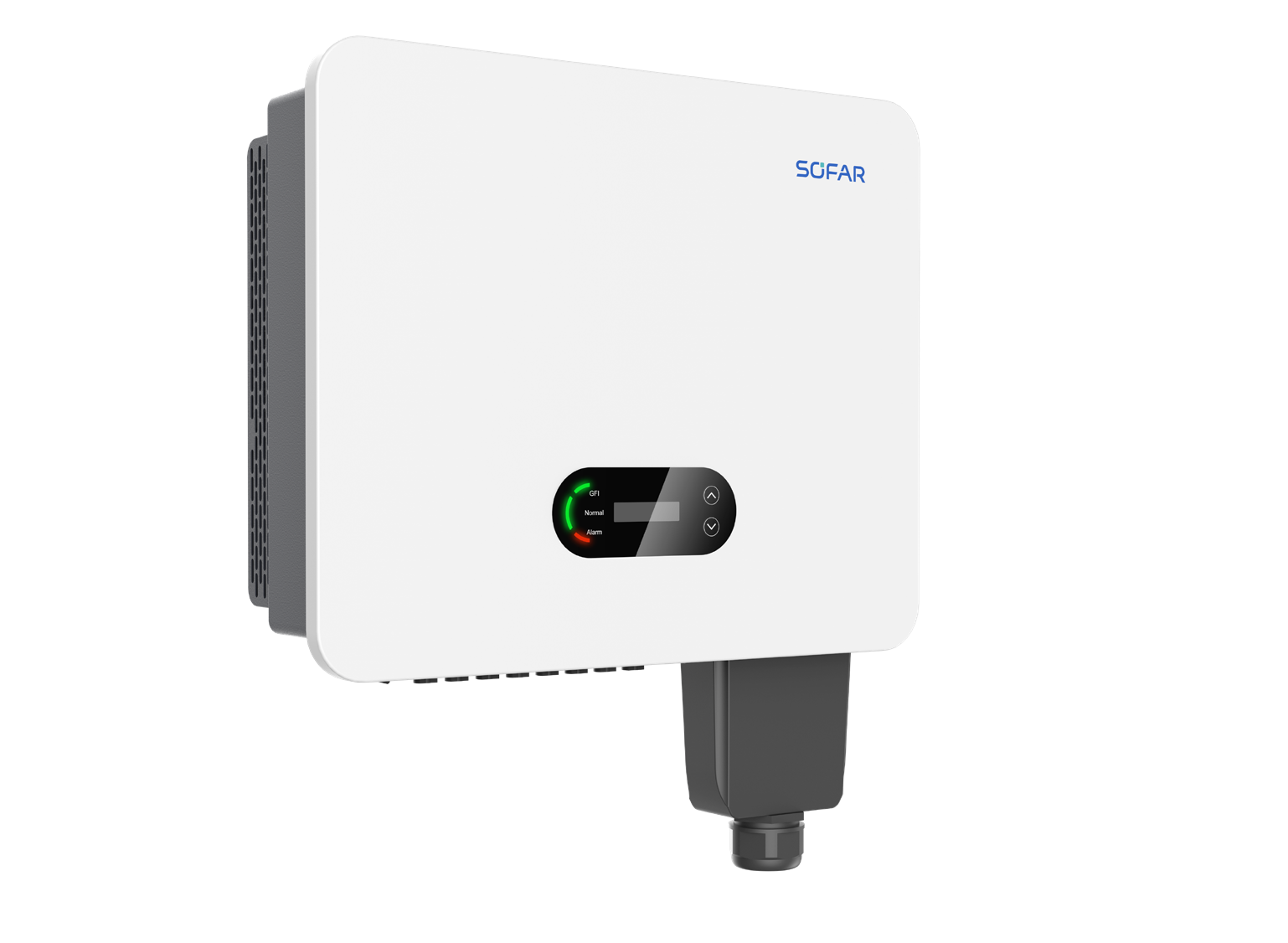

50KTLX-G3
String inverter, 3-ph, 4 MPPT
Art-No.
0153134
Manufacturer No.
900.01600058-0
Product details
Product information "50KTLX-G3"
Our newest addition to the inverter segment, Chinese manufacturer Sofar Solar, is launching a full-fledged product range. The project inverters of the KTLX-G3 series shine with a wide voltage range and high input current for high-performance module generations. Integrated AC + DC overvoltage protection, characteristic curve measurement and shadow management are also part of the standard equipment here.
Product advantages:
• 40A input current per MPPT
• Wide MPPT voltage range from 180 to 1000 V
• Integrated overvoltage protection AC / DC type II
• U-I characteristic scan function
• 10 year product warranty
Product features:
• AC power: 50 kW
• Number of MPPT: 4
• DC disconnect switch: integrated
• Connection phases: 3
• Interfaces: RS485, Wifi, Bluetooth, Ethernet (optional with LAN dongle), 4 x digital in (FRE)
• Connector plug: MC4
• Protection class: IP 65
• Cooling: active
• Dimensions: 585 x 480 x 220 mm (HxWxD)
• Weight: 37.0 kg
• Noise level: < 60 dB
Technical details
| AC nominal power (kW) | 50.00 |
|---|---|
| Surge protection AC | type 2 |
| Number of independent MPPT (pcs) | 4 |
| Arc Fault Circuit Interrupter | no |
| DC connection | MC4 |
| Surge protection DC | type 2 |
| Decibel | 60 |
| Display | with display |
| Feed-in phases | 3 |
| European efficiency (%) | 98.20 |
| Protection degree | IP65 |
| Total number of string inputs | 8 |
| Integrated DC switch | yes |
| Max. AC power (kVA) | 55.00 |
| Max. output current (A) | 83.30 |
| Max. generator power DC (kWp) | 75.00 |
| Max. input voltage DC (V) | 1100.00 |
| Max. input current DC (A) total | 160.00 |
| Max. input current per MPPT (A). | 40 |
| Max. short circuit current (A) total | 200.00 |
| Max. short circuit current per MPPT (A) | 50 |
| MPP max. voltage range input (V) | 1000.00 |
| Max. efficiency (%) | 98.80 |
| MPP min. voltage range input (V) | 180.00 |
| Min. temperature ambient (°C) | -30 |
| Interface 1 | RS485 |
| Interface 2 | Bluetooth |
| Start input voltage (V) | 200 |
| Topology | transformerless |
| Manufacturer | SOFAR |
|---|---|
| Manufacturer item name | SOFAR 50KTLX-G3 |
| Intrastat country of origin | China |
| Intrastat product number (HS-code) | 85044084 |
| Length incl. packaging (cm) | 68.20 |
|---|---|
| Width incl. packaging (cm) | 59.80 |
| Height incl. packaging (cm) | 38.00 |
| Weight incl. packaging (Kg) | 42.000 |
| Amount per Pallet | 4 |
| Amount p. Cont. | 280 |
| Pal. weight (kg) | 264.00 |
| Pal. dim. LxBxH (mm) | 700x1200x1300 |
| Pack. material | cardboard box |
| Length without packaging (mm) | 480.00 |
|---|---|
| Width without packaging (mm) | 585.00 |
| Height without packaging (mm) | 220.00 |
| Weight without packaging (kg) | 37.000 |
| Warranty provider | SOFAR |
|---|---|
| Product warranty (yr) | 10 |
| Standard product warranty (yr) | 10 |
